Description

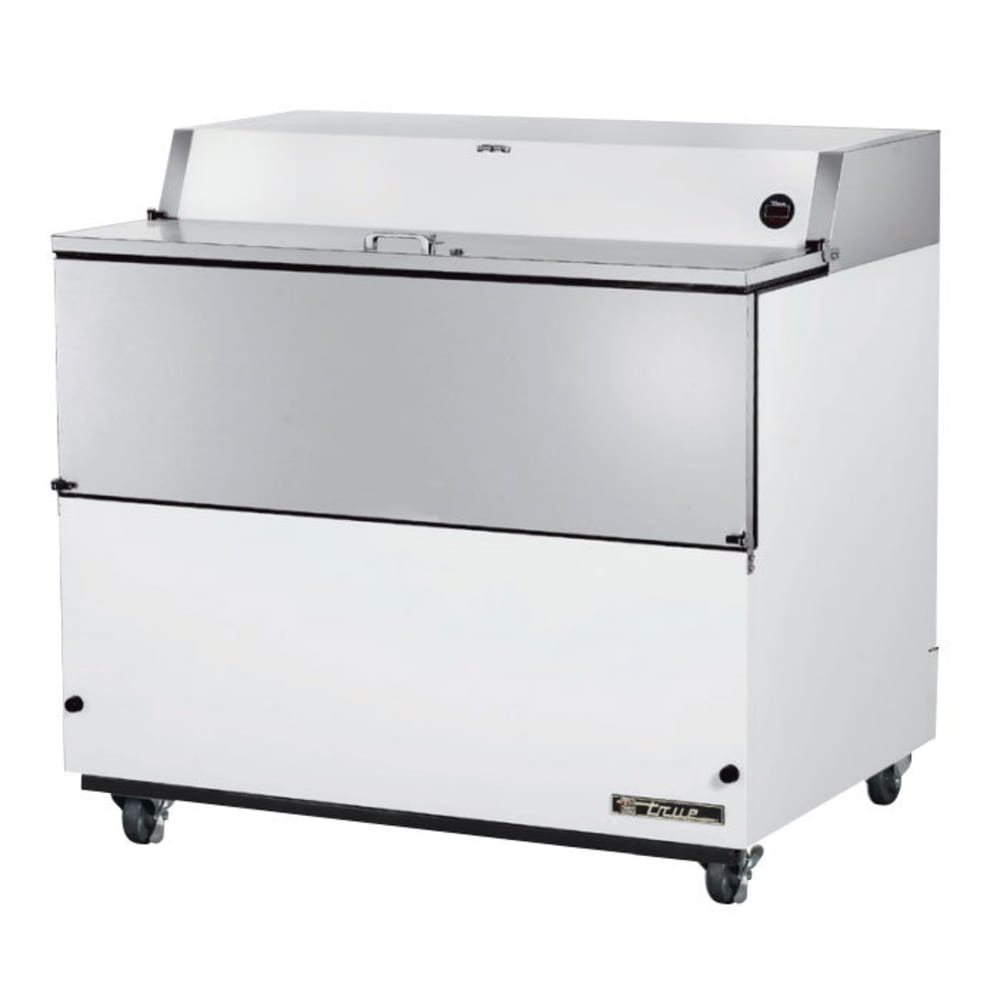

True Refrigeration TMC-49-HC Description
Accommodating 12 milk crates at a time, the True TMC-49-HC milk cooler is suitable for medium- to high-volume demands in lunchrooms and cafeteria. Its interior is accessible for stocking or product retrieval through a flip-up door on the top and drop door on the front, both of which are fitted with standard door locks to prevent tampering. White laminated vinyl makes up the exterior, as the interior is lined with clear-coated aluminum, and the cabinet is insulated throughout with foamed-in-place polyurethane.
Product stored and displayed in the True TMC-49-HC milk cooler is held between 33 and 38 degrees Fahrenheit, while the temperature is set by operators and monitored on an exterior temperature display. The forced-air refrigeration system is self-contained and uses a capillary tube system with R290 hydrocarbon refrigerant. Evaporator and condenser fan motors are electronically commutated to move a consistent volume of air, while the condensing unit slides out to simplify cleaning and maintenance.
To maintain a clean condensing coil over time, this unit condensing fan motor blows in a reverse direction for 20 seconds when the compressor starts up. This mechanism helps remove buildup of debris, dust, and dirt, which assists with more efficient operation. Preventive maintenance should still be carried out on the coil to ensure it's working properly over time.
Product Details
- Milk cooler has a capacity for (12) 13-in. W x 13-in. D x 111⁄8-in. H milk crates
- Stainless steel drop-front door and flip-up top door provide interior access
- Exterior constructed of white powder-coated, cold-rolled steel
- Interior liner is clear-coated aluminum
- Reinforced floor provides strength
- Polyurethane insulation is foamed in place throughout cabinet
- Includes clean-out drain with 1⁄2-in. plug
- 4-in.-diameter castors come standard; front castors lock
Refrigeration System
- Self-contained capillary tube system uses R290 hydrocarbon refrigerant
- Factory-balanced refrigeration system maintains cold temperatures
- Temperature holding range: 33-38 degrees F
- Evaporator and condenser fan motors consistently move air to limit heat production and conserve energy
- Reverse condensing fan motor blows in a reverse direction for 20 seconds
- Condensing unit is accessible from behind back grill
Dimensions & Utilities
- 491⁄4 in. W x 35 in. D x 463⁄4 in. H
- 2.7 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration TMC-49-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Top & Side |
| Also Known As | TMC-49, TRUE TMC-49, TRUTMC49, 890TMC49, TMC49, 675-191 |
| Capacity (Half Pint Cartons) | 768 |
| Color | White |
| Depth (in) | 33 |
| Height (in) | 41.63 |
| Hertz | 60 |
| Special Features | Floor Drain |
| Voltage | 115 |
| Warranty | 3 year parts & labor/7 year compressor |
| Width (in) | 49 |
| Series | TMC Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Product | Milk Coolers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Weight | 380.00 |
