Description

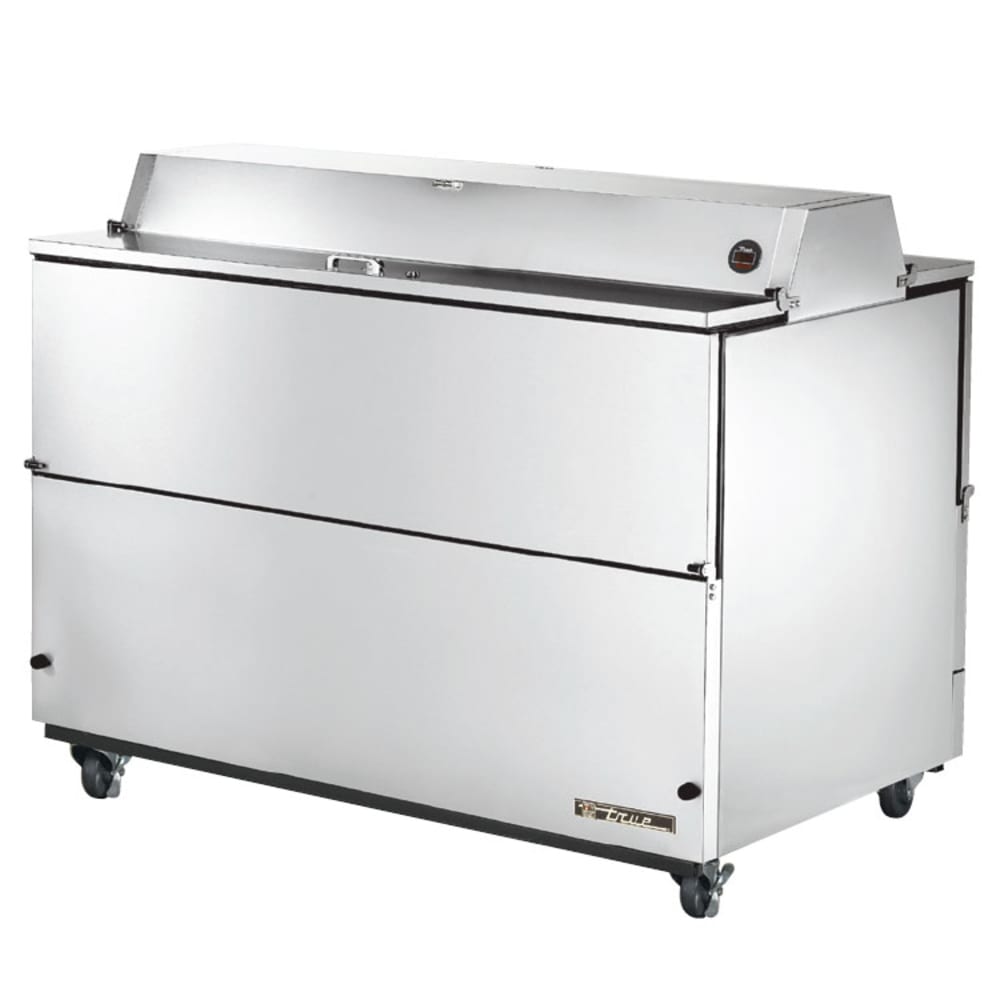

True Refrigeration TMC-58-S-DS-HC Description
The True TMC-58-S-DS-HC milk cooler can accommodate 16 standard milk crates, which are reinforced by floor racks because these crates get heavy when filled with milk cartons. For additional support, the floor is also reinforced, while doors are integrated into both sides of the cooler for milk access from either side, ideal for serving two cafeteria lines simultaneously. Each side has a set of doors, with one flipping up and one dropping down, and these doors are made of heavy-duty stainless steel and have locks to secure cartons.
Fans in the True TMC-58-S-DS-HC milk cooler evenly move cold air throughout the cabinet, as this forced-air design ensures air is cold enough to maintain the set temperature. Operators can set the temperature as low as 33 degrees Fahrenheit or as high as 38 degrees Fahrenheit, and this level is shown on the exterior so users can keep track of it. An environmentally friendly alternative to traditional refrigerants, this unit uses R290 hydrocarbon refrigerant.
Designed to help maintain a clean condensing coil surface, the reverse condensing fan motor blows in an opposite direction for 20 seconds when the compressor is turned on, removing debris. Working alongside preventive maintenance practice, this mechanism helps reduce the coil's energy consumption while keeping products cool. Improved coil function can also elongate overall unit performance.
Product Details
- Holds (16) 13-in. x 13-in. x 115⁄8-in. milk crates
- Reinforced, stainless steel floor has 3 heavy-duty floor racks that support heavy loads
- Durable, corrosion-resistant aluminum interior walls
- Drain removes water and spills
- Dual-sided access enables a drop-front and flip-up door on each side
- Door locks help prevent tampering and theft
- 1-piece, magnetic door gaskets are removable without tools
- Stainless steel exterior top, front, sides, and back are durable and rust resistant
- Welded steel frame rail has a corrosion-resistant black powder coating
- Polyurethane insulation is foamed in place to retain cold air
- (4) 4-in. swivel castors with locking front set
Self-contained Refrigeration System
- Forced-air refrigeration cools milk with fans to keep it at the right level
- Temperature holding range: 33-38 degrees F
- External digital temperature display
- Uses R290 hydrocarbon refrigerant
- Electronically commutated fan motors operate efficiently to reduce heat production and energy use
- Reverse condensing fan motor moves air in an opposite direction to help prevent debris buildup on condensing coil
- Evaporator's epoxy coating is corrosion resistant
- Accessible, slide-out condenser behind the back grille
Dimensions & Utilities
- 581⁄4 in. W x 35 in. D x 463⁄4 in. H
- 2.7 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration TMC-58-S-DS-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Top & Side |
| Capacity (Half Pint Cartons) | 1024 |
| Color | Silver |
| Depth (in) | 33 |
| Height (in) | 41.63 |
| Hertz | 60 |
| Special Features | Dual-Sided |
| Special Features | Floor Drain |
| Voltage | 115 |
| Warranty | 3 year parts & labor/7 year compressor |
| Width (in) | 58 |
| Series | TMC Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Product | Milk Coolers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Weight | 485.00 |
