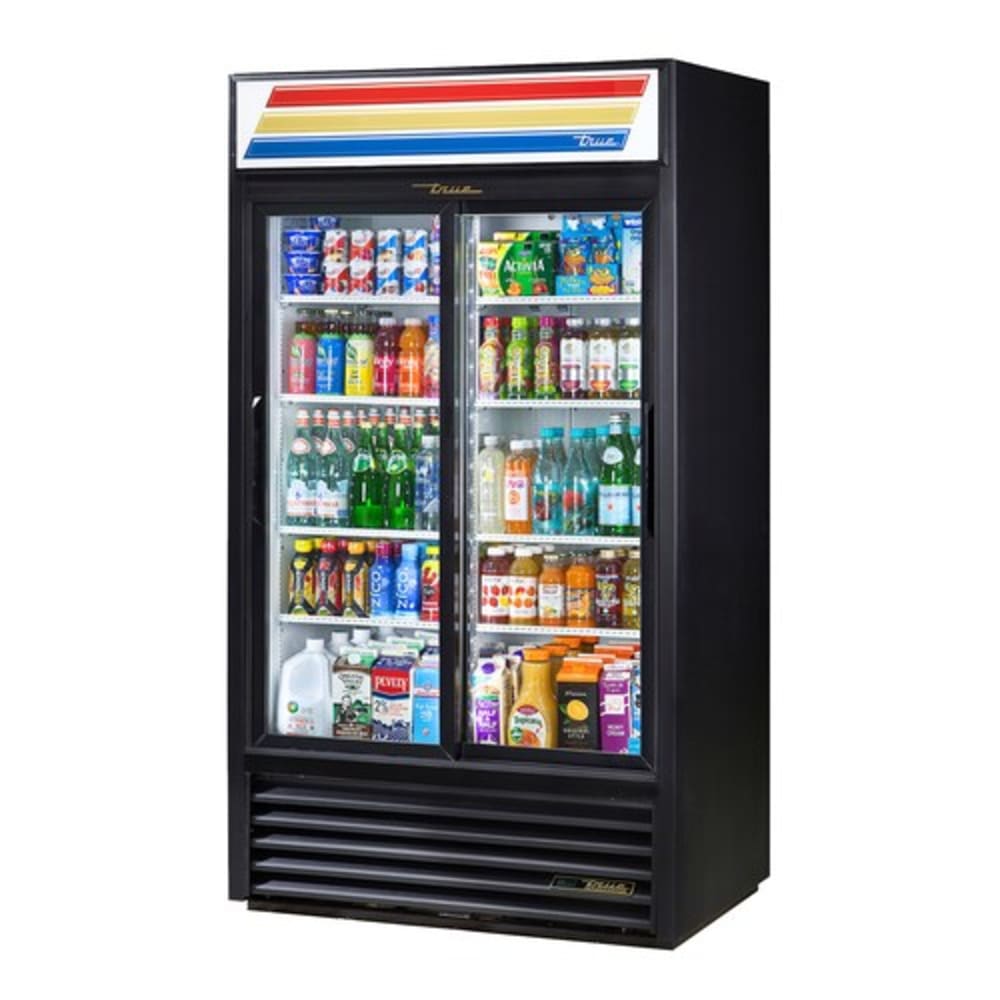

True Refrigeration GDM-37-HC-LD Description
The True GDM-37-HC-LD two-section glass door merchandiser uses R290 hydrocarbon refrigerant to keep temperatures cool, while the refrigeration system maintains even temperatures from 33 to 38 degrees Fahrenheit. Less heat is produced and energy consumption is reduced since the condenser and evaporator motors push out more air than most standard systems. Since it is mounted on the bottom of the cabinet, maintaining the condensing unit is convenient. A black powder-coated exterior is durable and permanent, while the white aluminum interior liner resists peeling and chipping. Polyurethane insulation is foamed in place to give the cabinet rigidity and trap cold air.
The reverse condensing fan motor blows excess dirt and debris off the condensing coil. This self-cleaning feature operates by blowing in reverse for the first 20 seconds after the compressor is started. For efficient operation and a lengthened unit lifespan, employees should reguarly maintain the condensing coil.
Double-pane, thermal-insulated glass doors have mitered plastic channel frames and 12-inch handles that simplify door opening, while the self-closing doors keep cold air in the cabinet. Bottled and packaged products sit on eight heavy-duty, PVC-coated wire shelves and are on 1⁄2-inch increments so they can adjust to varying product heights. LED interior lights brighten the cabinet and enhance product visibility, while the stainless steel interior floor on the True GDM-37-HC-LD two-section glass door merchandiser has a built-in drain for cleaning
Product Details
- 8 PVC-coated shelves are adjustable on 1⁄2-in. increments for varying heights of products
- 4 chrome-plated shelf clips per shelf
- Exterior sign panel lights up for ideal merchandising opportunities
- LED lights increase visibility in the cabinet
- Uses R290 hydrocarbon refrigerant
- Temperature range: 33-38 degrees F
- Even temperatures are maintained by the refrigeration system
- Air volume is consistent because of the condenser and evaporator fan motors
- Fan motor blows in reverse for 20 seconds upon compressor start up to clean the condensing coil
- Condensing unit is bottom mounted for maintenance
- Bottom-mounted condensing unit raises products for viewing
- Epoxy-coated evaporator resists corrosion
Cabinet Construction
- Permanent, durable black powder-coated exterior
- White aluminum liner resists corrosion and dents
- Stainless steel interior floor has a built-in drain to ease cleaning
- Cold air stays in the cabinet with the foamed-in-place polyurethane insulation
- Black powder-coated frame rail resists corrosion
Glass Doors
- Double paned and thermal insulated to prevent heat transfer
- Mitered plastic channel frames increase strength
- 12-in. handle on each door
- Self-closing design helps keep cold air in the cabinet
Dimensions & Utilities
- Shelves: 19 in. W x 209⁄16 in. D
- Overall: 431⁄2 in. W x 30 in. D x 785⁄8 in. H
- 6.5 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug
True Refrigeration GDM-37-HC-LD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | GDM-37 |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 37 |
| Depth (in) | 30 |
| Door Design | Sliding |
| Height (in) | 78.63 |
| Hertz | 60 |
| Sections | 2 |
| Shelving Type | Wire |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 43.5 |
| Series | GDM Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Weight | 425.00 |
