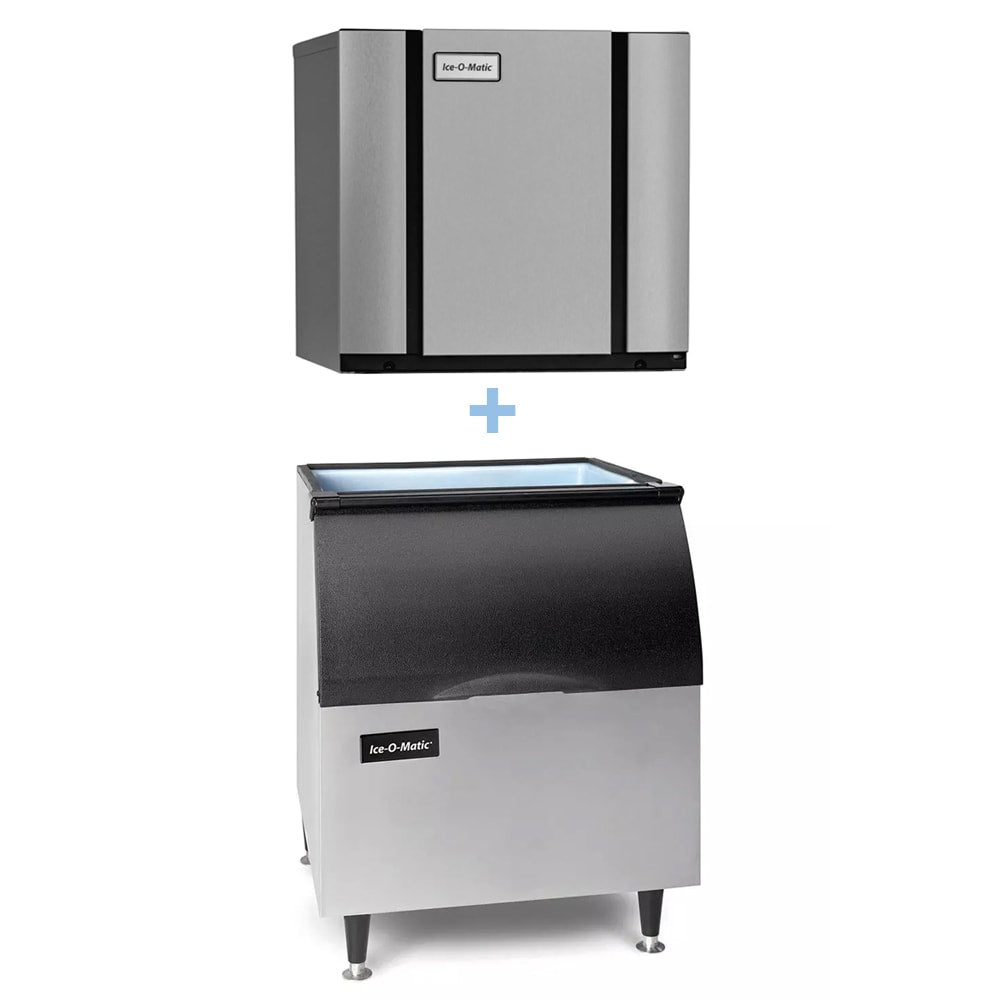

Ice-O-Matic - CIM0320HA/B40PS Commercial 313 lb Half Cube Ice Maker w/ Bin - 344 lb Storage, Air Cooled, 115v

Built with a self-contained condenser, the Ice-O-Matic CIM0320HA/B40PS half-cube ice maker head with bin can be installed without additional coolant lines or the purchase of a separate condensing unit. To resist the growth of mold, mildew, and bacteria, the ice machine is treated with built-in antimicrobial protection, and select parts snap out and can be washed in a dishmachine for quick cleaning. This ice maker can produce as much as 313 pounds of ice per day, and the bin holds as much as 344 pounds of ice once it's made.

The Ice-O-Matic CIM0320HA/B40PS ice machine with bin produces half-size cubes, a type of ice that's especially useful for chilling beverages such as soda, tea, water, and mixed drinks. To effectively disperse heat in a crowded setting, this unit features a dual top and side air exhaust system. Certain components of this machine can be recycled, increasing its environmental friendliness, and it has a heat displacement capability of 4,400 BTUs.

Ice Maker Details

• Part of the Elevation Series™
• Production capacity: 313 lb./24 hours in ideal conditions
• AHRI production capacity: 244 lb./24 hours
• Produces half-size ice cubes for chilling beverages
• Ice maker measures just 22.25 in. wide
• Cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air-cooled design
• Compact installation provided by self-contained condenser
• Heat dispersed from top and side dual air exhaust system
• Plastic food zone discourages bacterial growth
• BPA-free, dishwasher-safe components snap in and out
• PURE ICE® antimicrobial protection
• LED smart status display and indicator lights notify users of machine status
• Digital diagnosis with Universal Smart Harness™ control board
• 1-touch control for sanitizing and descaling process
• Select components are recyclable
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature: 50-100 degrees F
• Ideal water pressure: 20-80 PSIG
• Heat displacement: 4,400 BTU/hour

Ice Bin Details

• KBT19 bin top included; fits 22-in. cuber on 30-in. bin
• 344-lb. capacity
• Sloped, top-hinged front door
• Corrosion-resistant, insulated interior liner made of polyethylene
• Exterior finish of rotocast aluminum
• Supported by 6-in. adjustable legs

Dimensions & Utilities

• Ice maker: 22.25 in. W x 24.25 in. D x 21.25 in. H
• Bin: 30 in. W x 31 in. D x 37¹⁄₂ in. H
• Bin top: 30 in. W x 23¹⁄₂ in. D
• 11 A, 6.69 kW
• 120 V/60 Hz/1 ph
• Potable water inlet: ³⁄₈-in. FPT
• Water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. diameter
• Electrical connection junction box: ⁷⁄₈-in. diameter
