Description

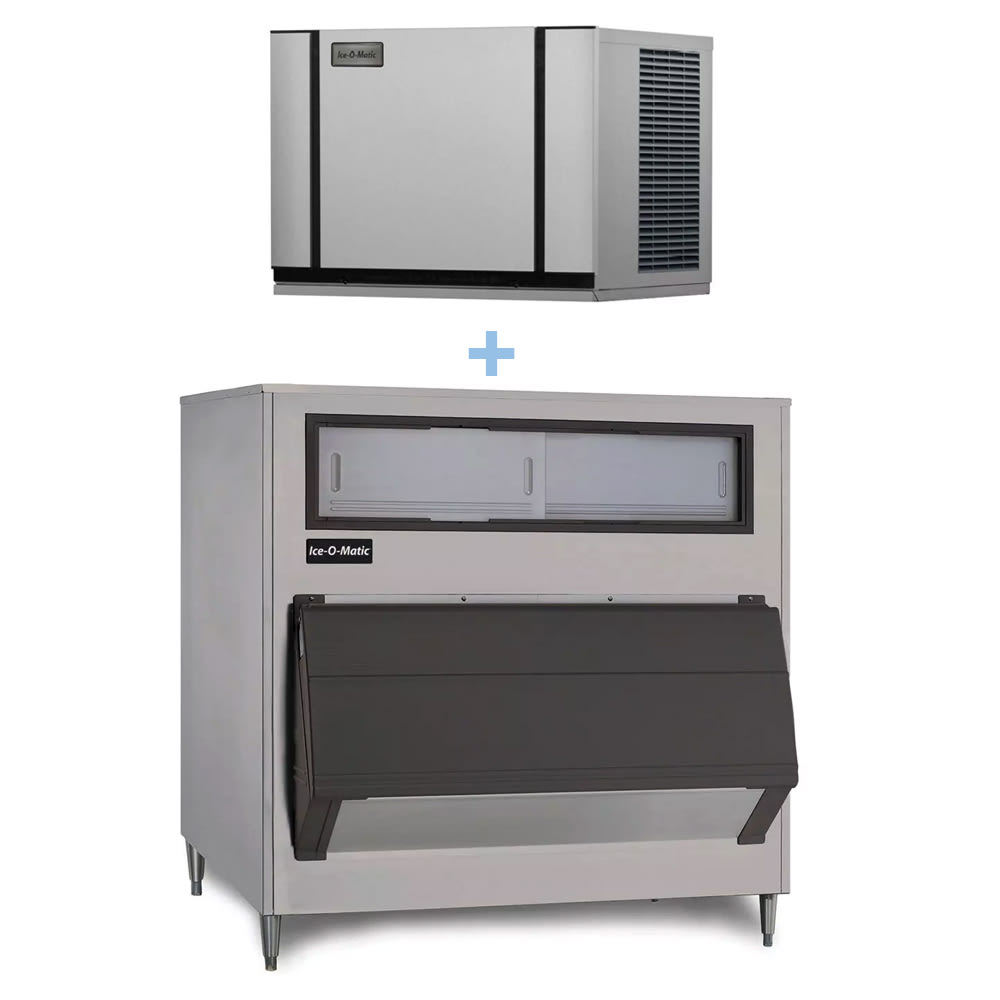

Ice-O-Matic CIM0330FA/B1000-48 Description
The Ice-O-Matic CIM0330FA/B1000-48 ice maker with bin produces as much as 313 pounds of full-size ice cubes per day, enabling users to serve a large volume of chilled beverages, such as water, juice, or tea. It rests atop a bin that can hold as much as 1,000 pounds of pre-frozen ice, enabling users to store enough ice to accommodate periods of increased demand. Its self-contained condenser style saves space, and the unit exhausts air out of dual vents to avoid overheating.
Built for reduced environmental impact, the Ice-O-Matic CIM0330FA/B1000-48 has BPA-free plastic parts that are removable and dishwasher safe for improved cleaning efficiency. Its interior features a plastic food zone that doesn't harbor unsanitary residue, and it's treated with an antimicrobial medium. The bin has a heavy-duty door that can be operated with one hand and a built-in ice shield that controls the flow of ice to prevent spillage. Inside the bin, a corrosion-resistant insulated poly liner shields the ice from exterior temperatures.
Ice Maker Details
- Part of the Elevation Series™
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Produces full-size ice cubes
- Cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air cooled
- Self-contained condenser
- Dual exhaust resists overheating
- Plastic food zone doesn’t retain food residue
- Snap-in pieces are dishwasher safe
- PURE ICE® antimicrobial protection
- LED smart status display and notification lights
- Universal Smart Harness™ control board simplifies maintenance
- Descaling and sanitizing controlled with 1 touch
- Built with recyclable components and BPA-free plastic
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour
Ice Bin Details
- 1,000-lb. capacity
- 31 in. deep
- 31.9-cu.-ft. capacity
- Top-hinged, slope-front door
- Corrosion-resistant insulated polyethylene liner
- Exterior finish is rotocast aluminum
- Designed with 6-in. adjustable legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 48 in. W x 31 in. D x 56 in. H
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3⁄8-in. FPT
- Water outlet: 3⁄4-in. FPT
- Electrical connection port: 7⁄8-in. diameter
- Electrical connection junction box: 7⁄8-in. diameter
