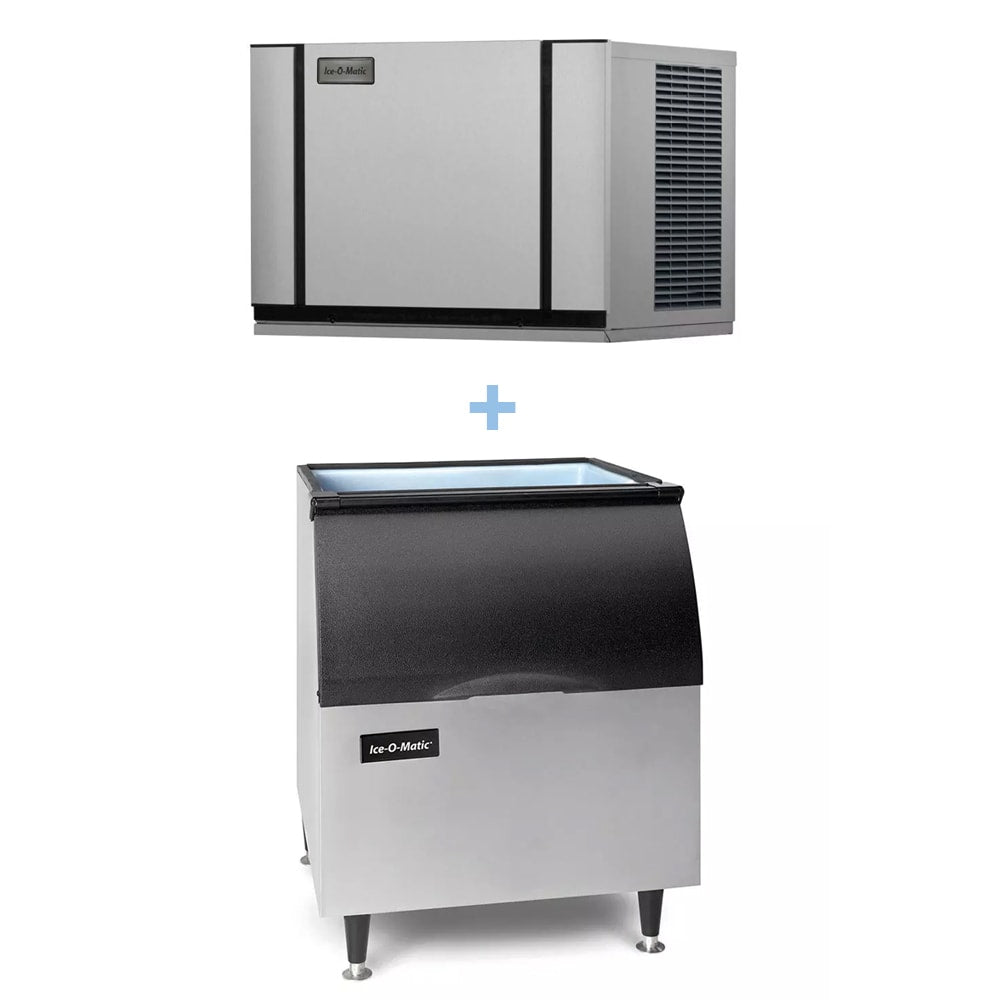

Ice-O-Matic - CIM0330FA/B40PS Commercial 316 lb Full Cube Ice Maker w/ Bin - 344 lb Storage, Air Cooled, 115v

Able to perform digital diagnostics, the Ice-O-Matic CIM0330FA/B40PS ice maker notifies users when cleaning is needed through its LED status lights. To streamline cleaning, the machine can self-sanitize and descale with the push of a button. It can produce as much as 313 pounds of ice each day under favorable conditions, and the matching bin can store as much as 344 pounds.

The Ice-O-Matic CIM0330FA/B40PS operates with an air-cooled system that features dual exhaust for improved heat management. Its condenser is self-contained, providing a compact footprint and simplifying installation procedures. To resist the growth of microbes, the unit is treated with an antimicrobial enhancement; its interior food zone is made of smooth plastic that doesn't have small crevices for bacterial residue to accumulate.

Ice Maker Details

• Part of the Elevation Series™
• Production capacity: 313 lbs./24 hours in ideal conditions
• AHRI production capacity: 244 lbs./24 hours
• Produces full-size ice cubes
• Cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled
• Condenser is self-contained
• Dual exhaust system for hot air management
• Plastic food zone resists buildup of residue
• Dishwasher-safe pieces snap in and out for quick cleanup
• Interior parts feature PURE ICE® antimicrobial defense
• LED smart display and notification lights
• Digital diagnostics with by Universal Smart Harness™ control board
• 1-touch controls for descaling and sanitizing save time when cleaning
• Recyclable interior parts and BPA-free plastic are environmentally friendly
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature: 50-100 degrees F
• Ideal water pressure: 20-80 PSIG
• Heat displacement: 4,400 BTU/hour

Ice Bin Details

• 344-lb. capacity
• Top-hinged, slope-front door
• Insulated, corrosion-resistant polyethylene liner inside bin
• Rotocast aluminum exterior resists scratches and dents
• Designed with 6-in. legs that can be adjusted for improved stability

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Bin: 30 in. W x 31 in. D x 37¹⁄₂ in. H
• 11 A, 6.69 kW
• 120 V/60 Hz/1 ph
• Potable water inlet: ³⁄₈-in. FPT
• Water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. diameter
• Electrical connection junction box: ⁷⁄₈-in. diameter
