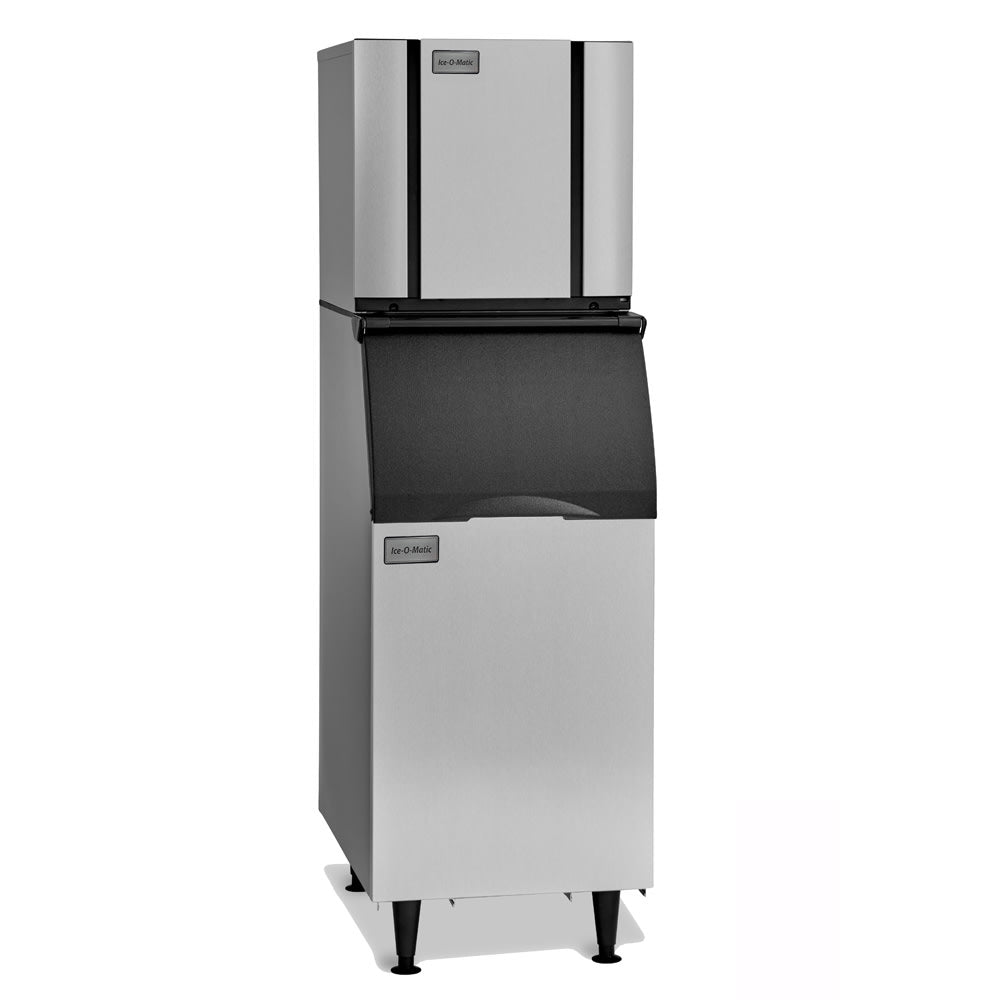

Ice-O-Matic - CIM0520FA/B42PS Commercial 561 lb Full Cube Ice Maker w/ Bin - 351 lb Storage, Air Cooled, 115v

As its narrow profile and production capacity are ideal for small-scale applications, the Ice-O-Matic CIM0520FA/B42PS ice maker and bin is great for service in hotels and waiting rooms. The maker head produces full-cube ice, popular in beverages for its slow melting due to its size. Decreasing the potential for airway blockage, a dual exhaust system expels hot air from side and top vents.

The Ice-O-Matic CIM0520FA/B42PS air-cooled ice machine and bin can hold 351 pounds of ice, which is preserved in the bin with its insulated construction. To keep the unit properly sanitized, the bin’s polyethylene interior offers quick and convenient cleaning. It has 6-inch legs that can be adjusted, levelling out the ice machine on floors that aren’t entirely even.

Ice Maker

• Part of the Elevation Series™
• 561-lb. maximum daily ice production
• 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Air-cooled system
• Produces full-cube ice
• Space-efficient narrow design
• Dual exhaust system releases air from side and top to counter exhaust obstruction
• Smart LED light notifies staff of cleaning needs and ice head status
• PURE ICE® antimicrobial defense
• 1-touch descaling/sanitization decreases user labor
• Plastic food zone
• Dishwasher-safe components snap out
• Universal Smart Harness™ control board
• Full-cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 6,252-BTU heat transfer capacity
• Ideal clearance: 6 in. for air intake and exhaust

Ice Bin

• 351-lb. bin capacity
• Sloped front door
• Polyethylene interior streamlines cleaning
• Aluminum finish
• Foam insulation reduces thermal loss
• 6-in. adjustable legs

Dimensions & Utilities

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

• 22 in. W x 31 in. D x 50 in. H
