Description

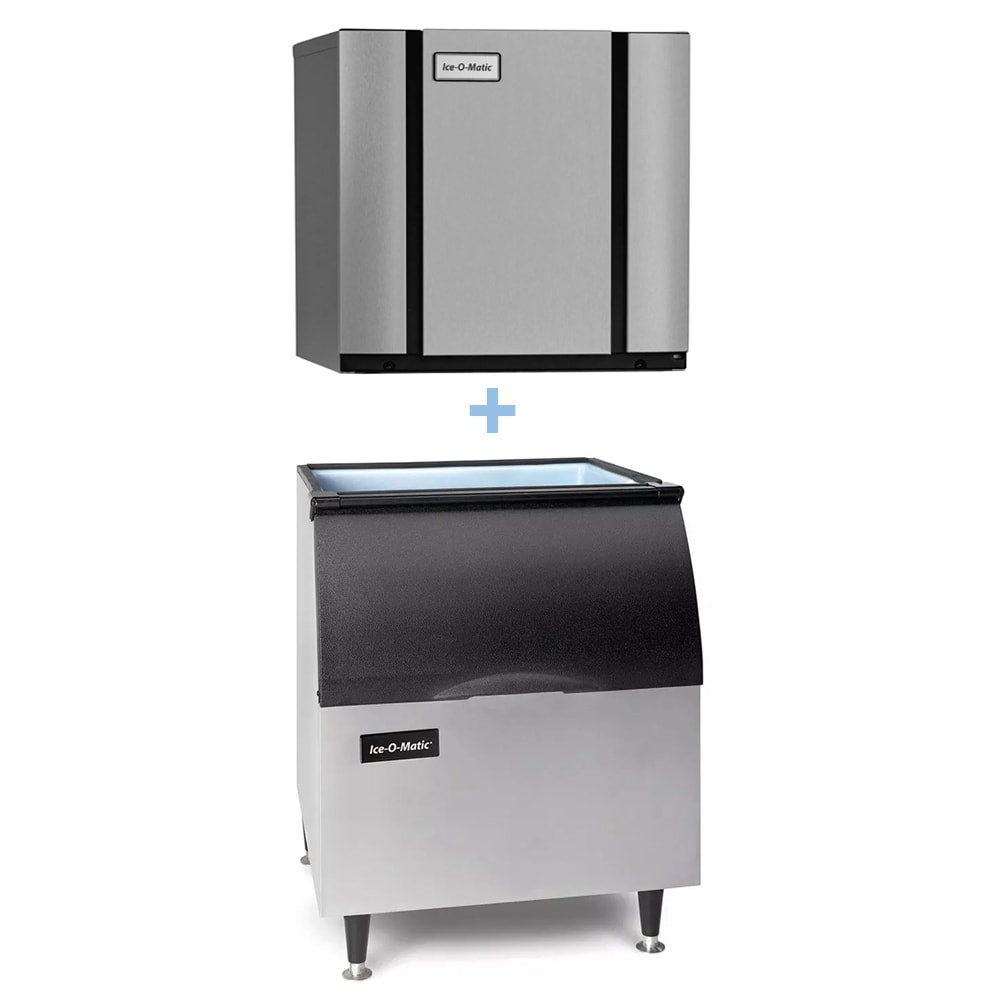

Ice-O-Matic CIM0520HA/B40PS Description
The Ice-O-Matic CIM0520HA/B40PS ice maker and bin makes half-cube ice, which is great because it cools drinks quickly. Decreasing potential exhaust obstruction, it’s built with a dual exhaust system that expels heated air through side and top vents. Antimicrobial defense and one-touch descaling work in tandem to keep the interior of the ice machine clean and free of contaminant buildups.
The Ice-O-Matic CIM0520HA/B40PS air-cooled ice machine’s bin is built with foam insulation, which strengthens the bin’s structure and improves thermal retention to preserve ice for a lengthened period of time. It has a polyethylene interior to simplify cleaning for establishment staff. The bin is mounted on 6-inch legs that can be adjusted to balance the unit out on uneven floors.
Ice Maker
- Part of the Elevation Series™
- 561-lb. maximum daily ice production
- 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
- Air-cooled system
- Produces half-cube ice
- Narrow space-efficient design
- Dual exhaust system discharges air from top and side to limit airflow blockage
- Smart LED light notifies staff of machine state and cleaning requirements
- PURE ICE® antimicrobial defense
- 1-touch descaling/sanitization
- Plastic food zone
- Snap-out dishmachine-safe components
- Universal Smart Harness™ control board
- Full-cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 6,252-BTU heat transfer capacity
- Ideal clearance: 6 in. for air intake and exhaust
Ice Bin
- 344-lb. bin capacity
- Sloped front door
- Polyethylene interior optimizes bin cleaning
- Rotocast exterior with aluminum finish
- Foam insulation maximizes chill retention
- 6-in. adjustable legs
Dimensions & Utilities
Ice Maker- 22.25 in. W x 24.25 in. D x 21.25 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
- 30 in. W x 31 in. D x 371⁄2 in. H
