Description

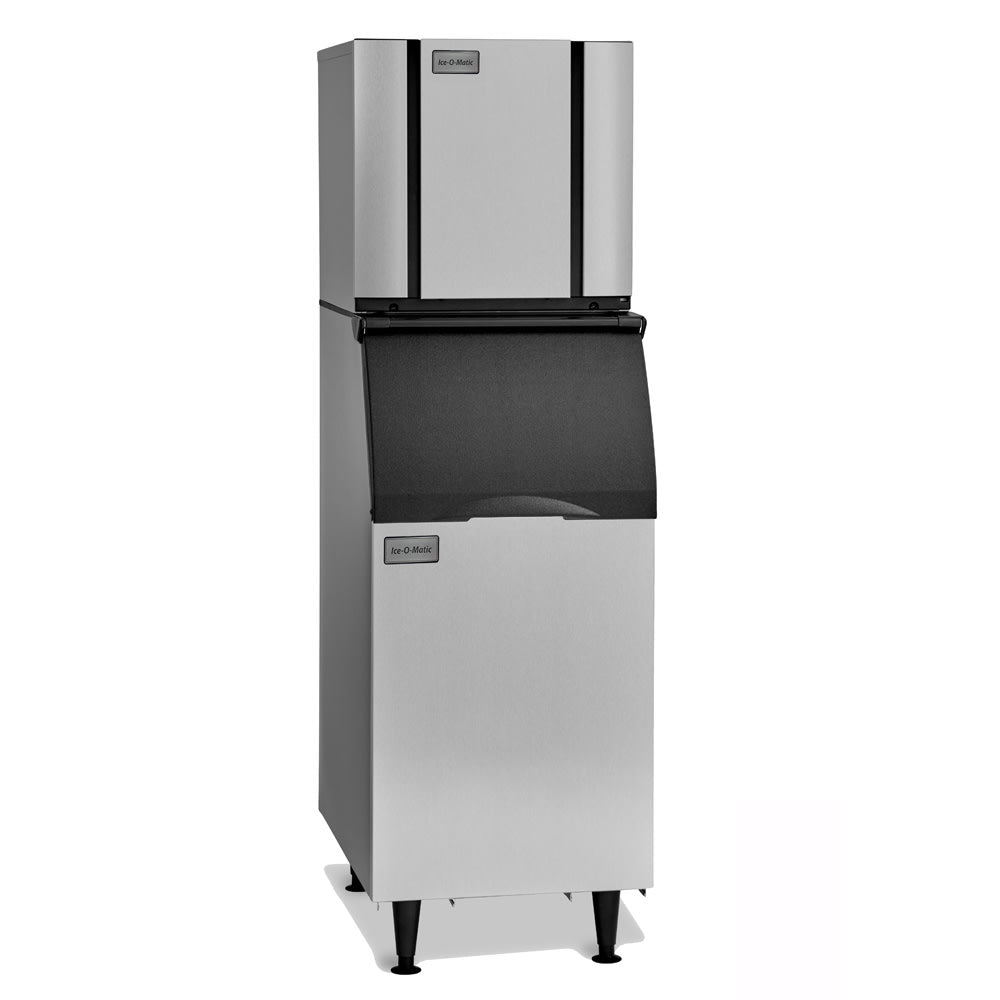

Ice-O-Matic CIM0520HA/B42PS Description
The Ice-O-Matic CIM0520HA/B42PS ice maker and bin is an ideal ice production option for casual dining and drinking establishments with its half-cube ice—a versatile form that works well in soft drinks. Splitting the airflow to cut down on exhaust obstruction, the machine head vents hot air through side and top vents. One-touch descaling and antimicrobial defense counter contaminants inside the head to help keep ice clean.
A great choice for small-scale ice applications, the Ice-O-Matic CIM0520HA/B42PS air-cooled ice machine and bin can hold 351 pounds of ice. Its bin is built with foam insulation, which gives it additional strength and boosts overall chill retention to lengthen the preservation life of stored ice. If the floor is unstable, a set of 6-inch adjustable legs enable operators to adjust the machine on uneven floors.
Ice Maker
- Part of the Elevation Series™
- 561-lb. maximum daily ice production
- 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
- Air-cooled system
- Produces half-cube ice
- Narrow, space-efficient design
- Dual exhaust system releases air from side and top to counteract exhaust blockage
- Smart LED light alerts staff to cleaning needs and machine state
- PURE ICE® antimicrobial defense
- 1-touch descaling/sanitization
- Plastic food zone
- Snap-out dishwasher-safe components
- Universal Smart Harness™ control board
- Full cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 6,252-BTU heat transfer capacity
- Ideal clearance: 6 in. for air intake and exhaust
Ice Bin
- 351-lb. bin capacity
- Sloped front door
- Polyethylene interior reduces cleaning needs
- Rotocast exterior with aluminum finish
- Foam insulation reduces thermal loss
- 6-in. adjustable legs
Dimensions & Utilities
Ice Maker- 22.25 in. W x 24.25 in. D x 21.25 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
- 22 in. W x 31 in. D x 50 in. H
