Description
Ice-O-Matic CIM0530FA/B40PS Description

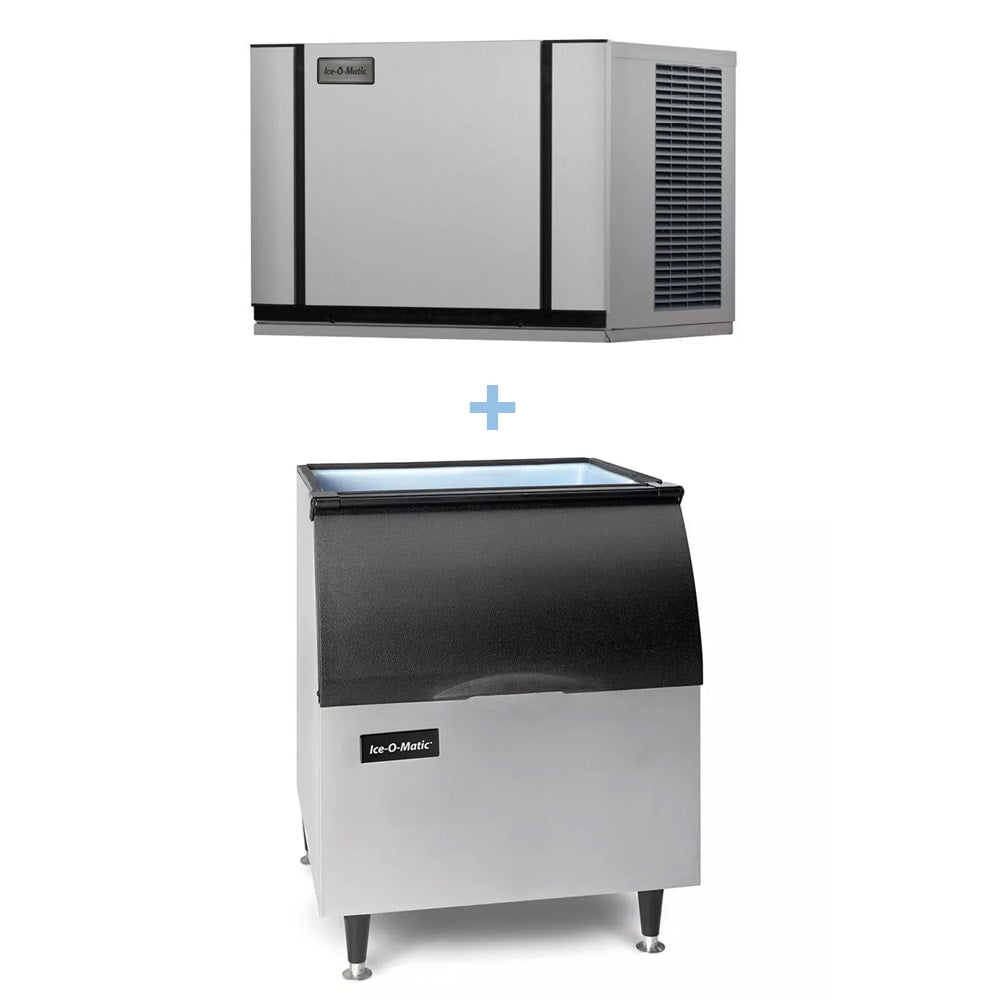

The Ice-O-Matic CIM0530FA full-cube ice maker measures 30.25 inches wide by 24.25 inches deep by 21.25 inches high, and the B40PS bin is 30 inches wide, 31 inches deep, and 371⁄2 inches high. This air-cooled equipment is cooled by moving fresh air across its condenser. It's self-contained to simplify installation and maintenance.
Producing as much as 561 pounds of ice every 24 hours, the Ice-O-Matic CIM0530FA/B40PS is constructed of environmentally friendly components such as recyclable parts and BPA-free plastic. To simplify cleaning and lengthen sanitation, this piece of equipment is built with a plastic foodzone that eliminates nooks and crannies. Its PURE ICE® antimicrobial protection inhibits bacterial growth and a smart LED light alerts the operator when the machine needs cleaning.
Ice Machine Details
- Part of the Elevation Series™
- Maximum production capacity: 561 lbs. of ice per 24 hours
- AHRI production capacity: 432 lbs. of ice per 24 hours
- Produces full-cube ice
- Environmentally friendly construction incorporates BPA-free plastic and recyclable parts
- Plastic foodzone streamlines cleaning by eliminating nooks and crannies
- PURE ICE antimicrobial protection prevents the spread of bacteria
- Smart LED light signals when cleaning is required
- 1-touch controls optimize sanitizing and descaling
- Snap-in-and-out components can be cleaned in a dishmachine
- Hot air discharges from side and top for quick installation
- Universal Smart Harness™ control board facilitates servicing and installation
- Digital diagnostics deliver status information
- Common configuration and universal components
- Heat displacement: 6,252 BTU
Ice Bin Details
- 344-lb. storage capacity
- Durable aluminum exterior finish
- Poly bin liner is insulated to preserve cold temperatures
- Heavy-duty, slope front door with top hinge
- Supported by adjustable, 6-in. legs
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 30 in. W x 31 in. D x 37.5 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
