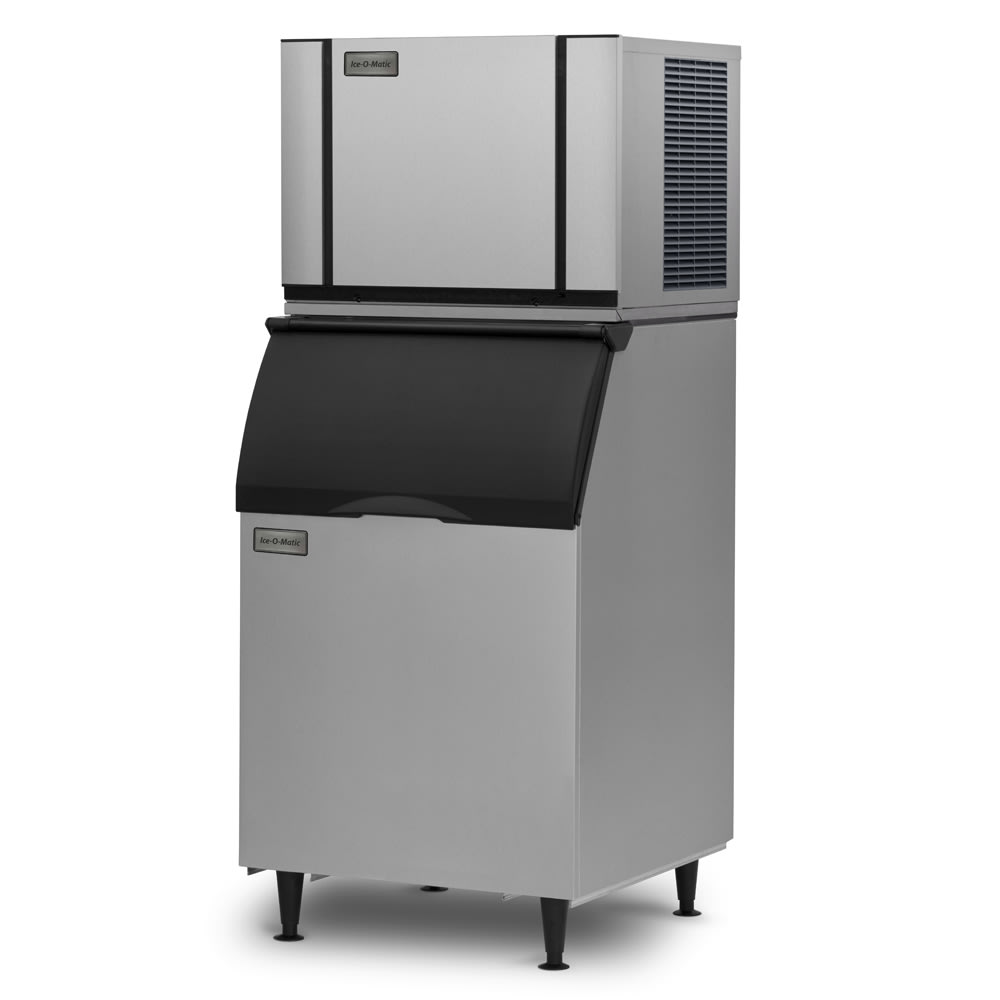

Ice-O-Matic - CIM0530FA/B55PS Commercial 561 lb Full Cube Ice Maker w/ Bin - 510 lb Storage, Air Cooled, 115v

In 24 hours, the Ice-O-Matic CIM0530FA/B55PS Elevation™ ice maker and bin combo can make 561 pounds of ice if incoming water is 70 degrees Fahrenheit and the surrounding air is 70 degrees Fahrenheit. However, if either of these temperatures is higher, the unit will produce less ice. Its full-size cubes measure ⁷⁄₈ inches on every side and work great in a variety of beverages—from water and sodas to alcoholic drinks. As ice is formed, it drops into a 510-pound-capacity storage bin lined with sanitary polyethylene and insulated with 1.5 to 3 inches of dense polyurethane.

This Ice-O-Matic CIM0530FA/B55PS ice machine with bin has features that facilitate cleaning so ice stays clean and fresh. For regular cleaning, a preset cycle removes dirt from the interior, and for more thorough sanitation, its interior is protected by an Agion® antimicrobial agent that hinders mold growth. Unlike metal units, the plastic food zone does not have sharp corners that trap debris, and its removable components can be cleaned in the dishwasher.

Wondering what features are available? This takes a closer look at these units.

Ice Maker Details

• Part of the Elevation series
• 561-lb. maximum daily ice production
• Creates full-size cubes
• Full cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Agion® protection slows down mold and slime growth
• LED light signals when interior needs cleaning
• 1-touch button starts a descale or sanitation cycle
• Food zone constructed of plastic to facilitate cleaning
• Food zone features removable, dishwasher-safe components
• Smart Harness™ controls are accessible and made with universal components
• Air-cooled condenser blows air out the side and top to reduce risk of obstruction
• Uses R404A refrigerant

Ice Bin Details

• 510-lb. ice storage capacity
• Foam insulation helps ice stay frozen
• Sloped door offers interior access
• Polyethylene interior is sanitary
• Aluminum exterior is durable
• 6- to 7-in. adjustable legs

Ideal Operating Conditions

• Incoming water temperature: 40-100 degrees F
• Incoming water pressure: 20-80 PSIG
• Ambient air temperature: 50-100 degrees F

Dimensions & Utilities

• Bin: 30 in. W x 31 in. D x 50-51 in. H (depending on adjustable legs)
• Ice machine: 30.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph
