Description

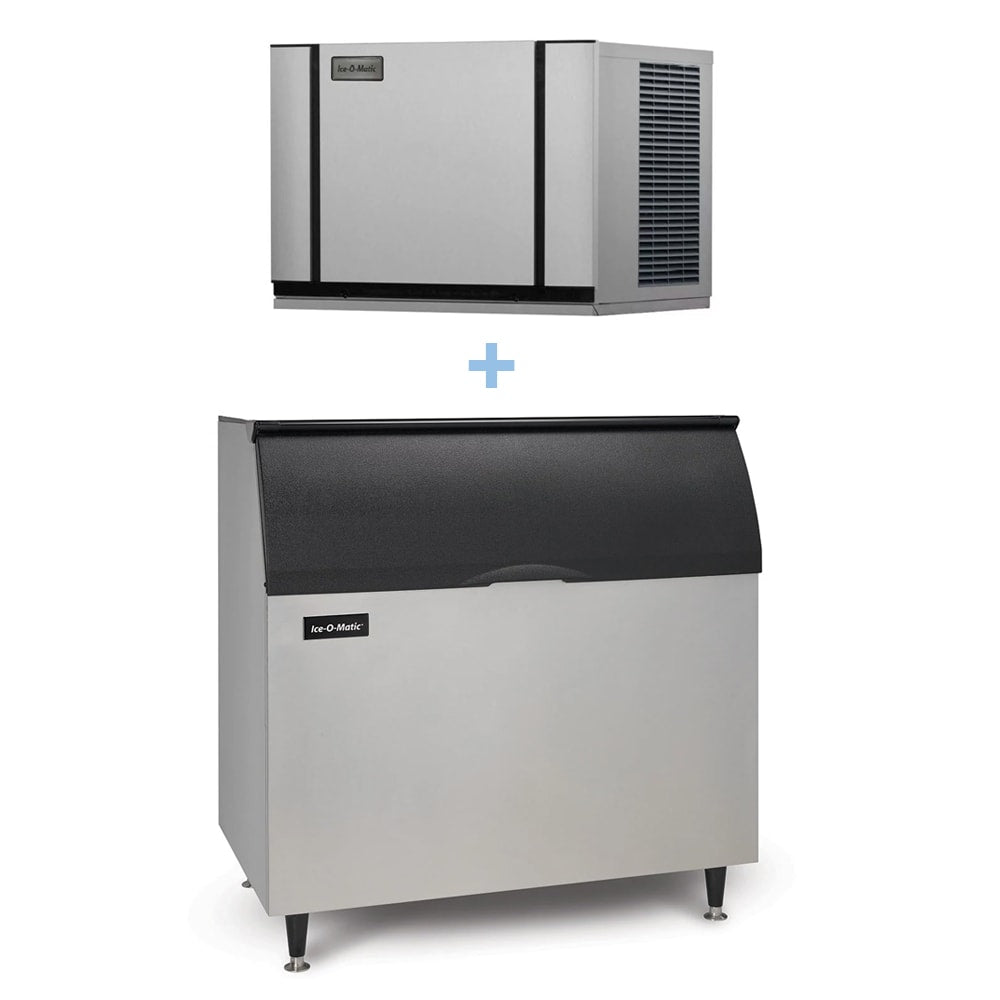

Ice-O-Matic CIM0530HA/B110PS Description
Producing a consistent supply of fresh, sanitary ice, the Ice-O-Matic CIM0530HA/B110PS ice maker with bin creates half-cube ice. These measure 3⁄8-inch by 7⁄8-inch by 7⁄8-inch and have a rhomboidal shape. This ice provides a high ice-to-water ratio and is optimal for serving soft drinks, smoothies, and frozen cocktails.
The Ice-O-Matic CIM0530HA/B110PS half-cube ice machine is great for filling fresh-food displays, serving ice to an entire dining room, or stocking satellite bins. This piece of equipment is an air-cooled unit that cools itself by moving fresh air across the condensers. Because its entire condenser is located inside the machine itself, it's simple to install and maintain. The unit produces as much as 520 pounds of ice in one full day.
Ice Machine Details
- Part of the Elevation Series™
- Maximum production capacity: 520 lbs. of ice per 24 hours
- AHRI production capacity: 390 lbs. of ice per 24 hours
- Produces half-cube ice
- Environmentally friendly design has recyclable parts and BPA-free plastic
- Plastic foodzone simplifies cleaning by eliminating nooks and crannies
- PURE ICE® antimicrobial protection inhibits bacterial growth
- Smart LED light signals when cleaning is required
- 1-touch controls facilitate sanitizing and descaling
- Snap-in-and-out components can be cleaned in dishwasher
- Hot air discharges from top and side to inhibit exhaust and enhance installation
- Universal Smart Harness™ control board streamlines servicing and installation
- Digital diagnostics deliver status of machine
- Common configuration and universal components
- Heat displacement: 6,252 BTU
Ice Bin Details
- Includes BPF-1 bin panels for securely mounting 30-in.-wide modular ice cubers
- 854-lb. storage capacity
- Aluminum exterior resists corrosion
- Polyethylene bin liner insulated with foam
- Top-hinged door with sloped front
- Adjustable, 6-in. legs stabilize the unit
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
