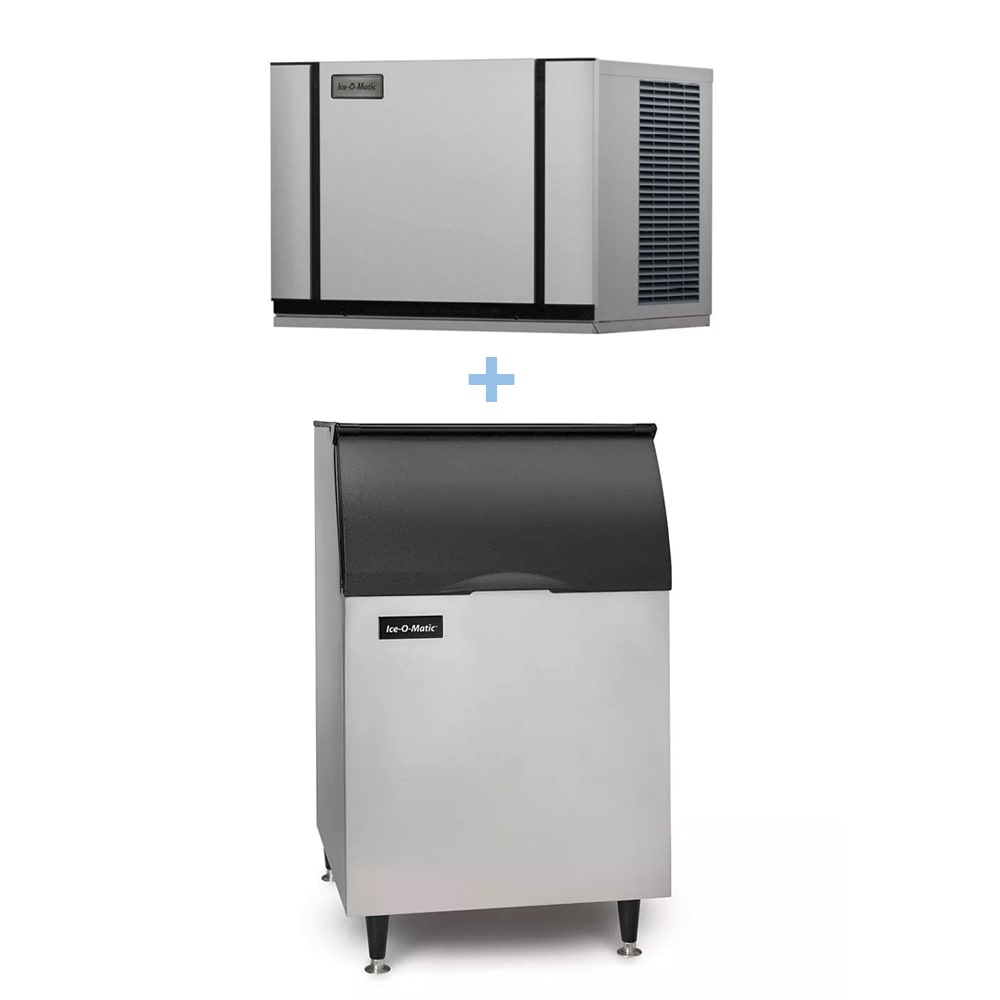

Ice-O-Matic - CIM0636FA/B55PS Commercial 600 lb Full Cube Ice Maker w/ Bin - 510 lb Storage, Air Cooled, 208-230v/1ph

Designed to reduce the spread of harmful germs, the Ice-O-Matic CIM0636FA/B55PS ice machine head and bin has antimicrobial enhancement inside, as well as a smooth plastic foodzone that doesn't harbor contaminants. For streamlined cleaning, the unit features one-touch sanitizing and descaling procedures while select components can be removed and washed in the dishwasher. Simplifying maintenance, this unit can perform digital diagnostics and has a smart LED light that signals when cleaning should occur.

The Ice-O-Matic CIM0636FA/B55PS ice maker and bin can store 510 pounds of ice, and the bin is insulated with foamed polyethylene to ensure the ice doesn't melt during storage. Resting on 6-inch legs, the bin's height can be adjusted to accommodate uneven flooring and keep the unit level. To serve the prepared ice, the bin has a top-hinged, sloped door that users can open to access the contents. On the exterior, the bin is made of rotocast aluminum, a construction that resists corrosion.

Ice Maker Details

• Part of the Elevation Series™
• 600-lb. maximum daily ice production
• 455-lb. AHRI-certified ice production
• Full-size ice cubes
• Cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled
• Built-in, self-contained condenser
• Dual exhaust system disperses heat effectively
• Plastic foodzone interior resists microbial growth
• BPA-free, warewasher-safe parts can be removed for quick cleaning
• Germ growth is restricted by PURE ICE® antimicrobial
• 1-touch controls activate descaling and sanitizing
• Smart LED light communicates routine maintenance needs
• LED display streamlines unit monitoring
• Calibration is simplified by Smart Harness™ control board
• Recyclable components for minimized environmental impact
• Ideal ambient temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal water pressure: 20-80 PSIG

Ice Bin Details

• 510-lb. capacity
• Rotocast aluminum exterior withstands high-volume use
• Foam-insulated polyethylene liner keeps ice cold
• Top-hinged, sloped front access door
• 6-in. legs adjust to ensure the unit remains level
• Multiple bin top sizes are available and are sold separately

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Bin: 30 in. W x 31 in. D x 50 in. H
• 9.2 A, 5.63 kW
• 208-230 V/60 Hz/1 ph
• Ice maker potable water inlet: ³⁄₈-in. FPT
• Ice maker water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. dia.
• Electrical connection junction box: ⁷⁄₈-in. dia.
