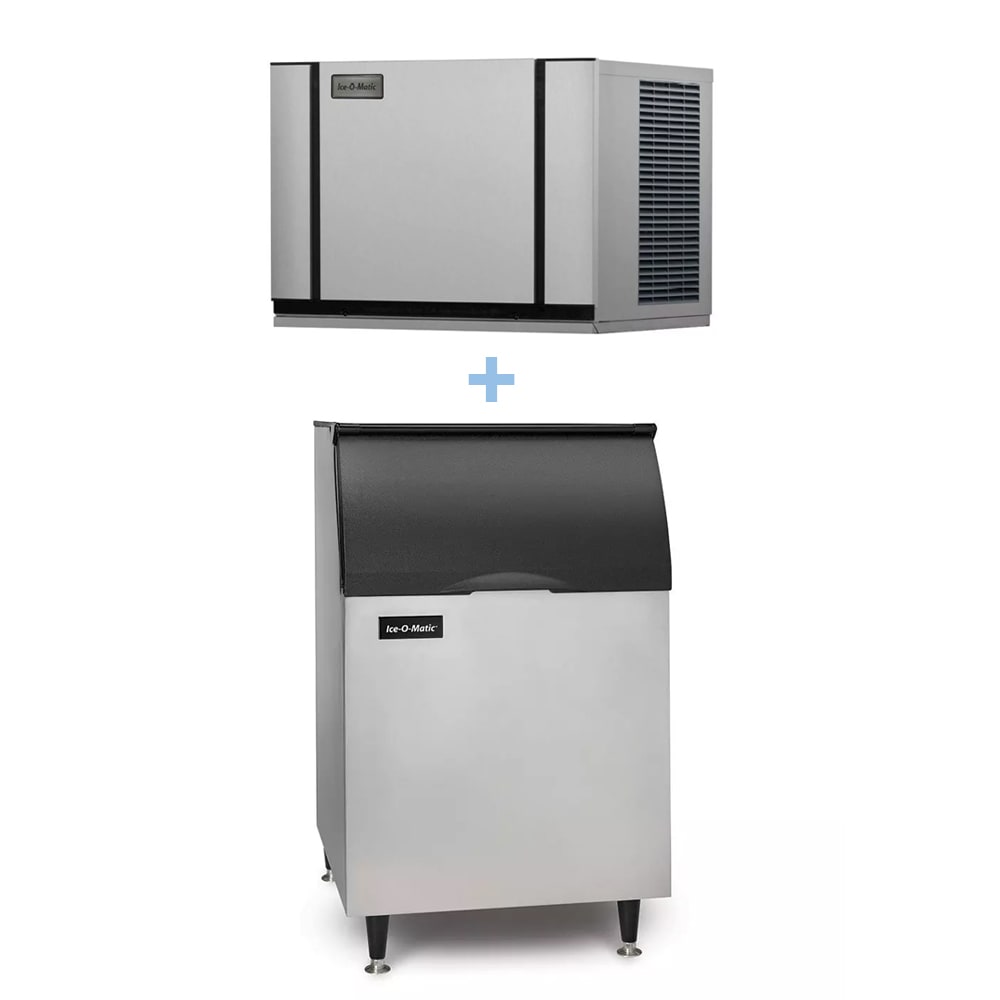

Ice-O-Matic CIM0636HA/B55PS 600 lb Half Cube Ice Maker w/ Bin - 510 lb Storage, Air Cooled, 208-230v/1ph

To enable installation flexibility, the Ice-O-Matic CIM0636HA/B55PS ice maker/bin combo features a dual-exhaust system that discharges air from the side and the top. Its LED display alerts users of operational updates, and its PURE ICE® antimicrobial protection slows the growth of bacteria, mildew, and other microbes. With a maximum rate of 600 pounds per day in optimal conditions, it produces half-size ice cubes; this type is ideal for chilling sodas, cocktails, and iced tea.

The Ice-O-Matic CIM0636HA/B55PS ice maker’s bin is elevated on 6-inch legs and features a corrosion-resistant aluminum exterior. Its interior is lined with polyethylene to optimize sanitation and resist harboring dust and debris. Operators can access the interior, which holds as much as 510 pounds of ice, through a top-hinged, sloped front door.

Ice Maker Details

• Part of the Elevation Series™
• 600-lb. maximum daily ice production
• 455-lb. AHRI daily ice production
• Makes half-size cubes
• Cube size: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Easy-to-clean plastic food zone equipped with dishwasher-safe components
• LED status display enables constant monitoring
• Descales and sanitizes with 1-touch controls
• Dual-exhaust system discharges air from side and top for installation flexibility
• Protect with PURE ICE antimicrobial agent
• Air cooled
• Self-contained condenser
• Cools with R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 8,600-BTU heat transfer capacity

Ice Bin Details

• 510-lb. application capacity
• Sloped, top-hinged front door
• Durable, corrosion-resistant aluminum exterior
• Sanitary polyethylene interior liner
• Mounted on 6-in. legs

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Ice bin: 30 in. W x 31 in. D x 50 in. H
• 9.2 A, 5.63 kW
• 208-230 V/60 Hz/1 ph
