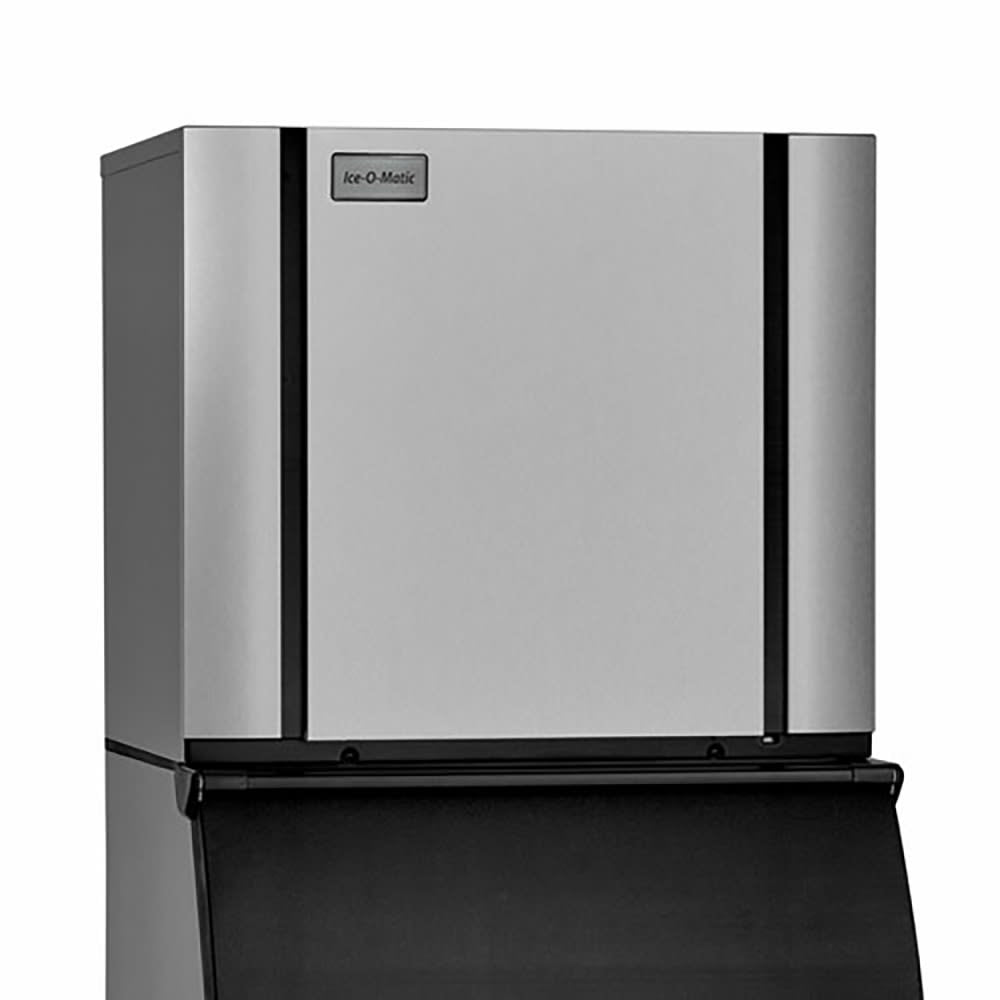

Ice-O-Matic CIM1136FA 30" Elevation Series™ Full Cube Ice Machine Head - 932 lb/24 hr, Air Cooled, 208/230v/1ph

Ice-O-MaticSKU: 647351823669

Product Overview;

Sale price$6,801.00

Pickup available at Chef AAA

Usually ready in 1 hour



Ice-O-Matic CIM1136FA Description

In 24 hours, the Ice-O-Matic CIM1136FA Elevation Series™ ice machine head can make 932 pounds of full-cube ice. These cubes are 0.875 inch by 0.875 inch by 0.875 inch, and since they melt slowly in drinks, they are perfect for restaurants and bars. The unit's condenser is air cooled, meaning a fan blows air over the coils to cool refrigerant as it moves away from the evaporator plate, freezing water to form cubes.

Cleaning and sanitizing this Ice-O-Matic CIM1136FA ice maker is simple since it has one-touch controls. When cleaning is needed, an LED indicator light illuminates to notify the operator. The food zone—which houses the parts that come in contact with ice and water—is made of easy-to-clean plastic without cracks or crevices. Antimicrobial protection in this area slows bacteria, scale, and mold growth, and the components have a snap-in-and-out design that ensures they are convenient to remove for cleaning.


Product Details

  • 932-lb. maximum daily production
  • Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
  • Condensing unit is cooled with air
  • Air exhales from the side and top, increasing installation flexibility without cutting off airflow
  • Smart Harness™ control board gives diagnostic information for servicing
  • Required ambient air temperature: 50-100 degrees F
  • Required incoming water temperature: 40-100 degrees F
  • Required incoming water pressure: 20-80 PSIG
  • Part of the Elevation Series
  • Ice bin or dispenser is sold separately

Simple Cleaning and Sanitizing

  • Plastic food zone is made without cracks and crevices so it can be conveniently wiped down
  • Agion® antimicrobial agent protects against bacteria growth
  • BPA-free components snap in and out for convenient dishwasher cleaning
  • LED light illuminates to indicate when cleaning is needed
  • 1-touch control for cleaning and sanitizing

Dimensions & Utilities

  • 30.25 in. W x 24.25 in. D x 26.9 in. H
  • 12.2 A, 5.1 kW
  • 208-230 V/60 Hz/1 ph
