Description
True Refrigeration STA2H-4HG Description

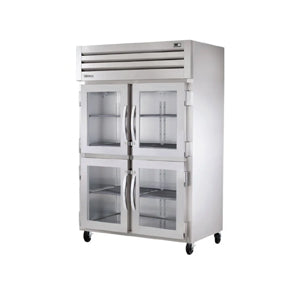

This True STA2H-4HG Spec Series® reach-in mobile heated cabinet is designed to hold pre-cooked and baked food at serving temperatures. It is constructed of stainless steel and aluminum to resist corrosion and dents, and its walls are insulated with polyurethane foam to keep the inside at a set temperature between 140 and 180 degrees Fahrenheit, which is shown on the outside in Fahrenheit or Celsius. To generate and distribute heat throughout the cabinet, this unit uses one stainless steel heating element and low-velocity fans.
This True STA2H-4HG heated holding cabinet has four half doors that are made of low-e, double-pane glass, which offers product visibility without losing warm air from frequent opening. Eight cam-lift hinges securely attach the doors to the cabinet, and all the doors can stay open past 120 degrees to help with loading and unloading. To conserve energy, the doors close on their own when they are opened less than 120 degrees. Magnetic gaskets in the door frames prevent warm air from seeping out.
Product Details
- Part of the Spec Series
- Exterior is constructed of stainless steel
- Aluminum interior walls and back resist scratches
- Stainless steel interior floor and ceiling can be wiped down quickly
- Polyurethane foam insulates the cabinet
- Temperatures are displayed on the outside in Fahrenheit or Celsius
- 6 chrome-plated wire shelves hold product
- 3 feed wires are included for hardwiring at the installation site
- Dedicated sole-use circuit is required
Heater System
- Intended to hold warm, already-cooked and baked food
- Temperature holding range: 140-180 degrees F
- 1 stainless steel heating element efficiently generates heat
- Low-velocity fans consistently distribute warm air
- Top vent can be manually controlled to monitor humidity levels
Doors
- Made of low-e, double-pane glass
- Bolt locks protect contents
- Metal handles offer a sturdy grip
- 8 cam-lift hinges provide a secure attachment
- Loading and unloading supported since they stay open at 120 degrees
- Close on their own to conserve energy
- Magnetic door gaskets seal warm air inside
Dimensions & Utilities
- 525⁄8 in. W x 357⁄32 in. D x 841⁄8 in. H
- 3,000 W
- 208-240 V/60 Hz/1 ph
True Refrigeration STA2H-4HG Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 33.75 |
| Door Design | Dutch |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 77.75 |
| Hertz | 60 |
| kW | 3 |
| Pan Capacity | 6 |
| Sections | 2 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 52.63 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Reach In |
| No. of Doors | 4 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 675.00 |
