Description

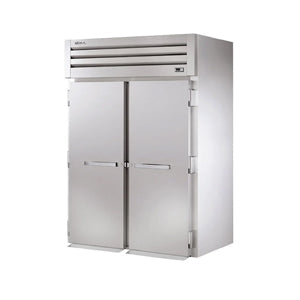

True Refrigeration STA2HRT-2S-2S Description
To access rolling racks from both sides, the True STA2HRT-2S-2S Spec Series® roll-thru heated cabinet has two doors on the front and two doors on the back. This cabinet accepts two 27-inch-by-29-inch-by-66-inch racks that roll into the cabinet on stainless steel ramps. Bumpers inside the cabinet protect the walls from scratches and dents, and aluminum interior walls and stainless steel floor withstand heavy use. Made of stainless steel, the exterior is strong and resists corrosion.
This unit is designed to maintain temperatures of hot food, but it cannot reheat cold product. The operator can set a temperature between 140 and 180 degrees Fahrenheit, and each section has a tube heating element that generates heat. Vents on top of the True STA2HRT-2S-2S heated cabinet release hot air to control humidity, keeping food crisp and fresh. If additional humidity is needed, a 12-inch-by-20-inch water pan is included.
Product Details
- Part of the Spec Series
- Holds hot foods but is not designed to heat cold or room-temperature product
- Electronic temperature control and exterior on/off switch monitor the heating system
- 2 stainless steel, finned-tube heating elements generate electric heat
- Manually controlled, top-mounted vent adjusts humidity to prevent soggy food
- Accepts (2) 27-in. W x 29-in. D x 66-in. H roll-in racks
- Incandescent interior lighting is activated by an exterior on/off switch
- Exterior color-coded display accurately reads the interior temperature
- Temperature holding range: 140-180 degrees F
- Warm air is evenly distributed throughout the cabinet with low-velocity fans
- 12-in. x 20-in. water pan is included if more humidity is needed
Cabinet Construction
- Stainless steel breaker caps
- 4 heavy-gauge stainless steel ramps
- Bumpers prevent roll-in carts and racks from damaging the cabinet interior
- Stainless steel exterior doors, front, and sides are strong for regular use
- Aluminum interior side walls and back are heavy duty
- Stainless steel interior floor and ceiling resist corrosion
- Foamed-in-place polyurethane insulation strengthens structure
- 4 solid stainless steel doors create a roll-thru design
- Bolt-style door locks prevent unauthorized access
- 3 cam-lift hinges per section enable doors to self-close
- Doors stay open past 120 degrees for loading and unloading pans
- Removable, magnetic door gaskets prevent heat loss
Dimensions & Utilities
- 68 in. W x 453⁄8 in. D x 84 in. H
- 4000 W
- 115, 208-240 V/60 Hz/1 ph, NEMA 14-20P plug
True Refrigeration STA2HRT-2S-2S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 37.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.75 |
| Hertz | 60 |
| kW | 4 |
| Pan Capacity | 2 Racks |
| Sections | 2 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 68 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Roll Thru |
| No. of Doors | 4 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 760.00 |
