Description

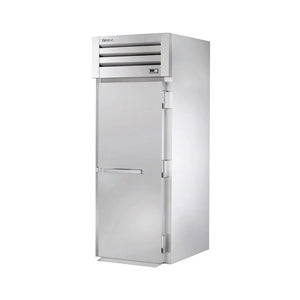

True Refrigeration STG1HRI89-1S Description
This True STG1HRI89-1S Spec Series® roll-in heated cabinet is designed to hold warm cooked and baked food. Its roll-in design features a stainless steel ramp that enables carts and racks to be rolled in for storage. This unit is constructed of stainless steel and aluminum, which resist corrosion and are simple to clean. Its walls are foamed with polyurethane insulation to prevent warm air from escaping. Using two stainless steel heating elements, the interior stays between 140 and 180 degrees Fahrenheit. Low-velocity fans evenly circulate warm air and a top vent can be adjusted to control the humidity level.
This True STG1HRI89-1S roll-in one-section holding cabinet has a stainless steel door with a metal handle that provides a sturdy grip when opening. To prevent theft and tampering, the door has a bolt-style lock and three cam-lift hinges to securely attach the door to the cabinet. The hinges enable the door to be left open past 120 degrees for loading and unloading and, when left open under 120 degrees, the door closes on its own to conserve energy. A magnetic gasket snaps into the door frame and can be removed without tools. The interior is illuminated with incandescent lights.
Product Details
- Part of the Spec Series
- Bolt lock protects contents
- Metal handle facilitates opening
- Door can stay open past 120 degrees and close on its own under 120 degrees
- 3 cam-lift hinges secure the door to the cabinet
- 1-piece magnetic gasket can be removed without tools
- Interior is brightened with incandescent lights
- Bumpers protect the interior from cart and rack damage
- 12-in. x 20-in. water pan is included if extra humidity is needed
- Requires a dedicated, sole-use circuit
Heater System
- Intended to hold warm baked and cooked food
- Temperature range: 140-180 degrees F
- Heat is evenly generated with 2 stainless steel heating elements
- Low-velocity fans uniformly distribute warm air
- Top vent can be manually controlled to adjust humidity levels
- Color-coded temperature display shows precise readings
Cabinet Construction
- Stainless steel door exterior with matching aluminum sides
- Interior back and walls are made of aluminum
- Interior ceiling and floor are constructed of stainless steel
- Insulated with polyurethane foam to keep warm air inside
- 1 heavy-gauge, stainless steel ramp enables carts and racks to be rolled in
- Accommodates roll-in racks measuring 27-in. W x 29-in. D x 72-in. H (sold separately)
Dimensions & Utilities
- 35 in. W x 387⁄8 in. D x 89 in. H
- 2,000 W
- 115, 208-230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 14-20P plug
True Refrigeration STG1HRI89-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 34.75 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 88.75 |
| Hertz | 60 |
| kW | 2 |
| Pan Capacity | 1 Rack |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 35 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Roll In |
| No. of Doors | 1 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 380.00 |
