Description

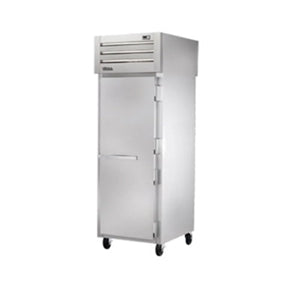

True Refrigeration STR1FPT-1S-1S Description
The True STR1FPT-1S-1S Spec Series® single-section pass-thru freezer has three chrome, adjustable shelves that are illuminated by LED lights to enhance visibility. A solid, stainless steel door on the front and back enables interior access from either side. For cold air retention, the doors self-close, while also staying open past 120 degrees to aid in loading and unloading product. To protect stored items from tampering and theft, the doors have bolt-style locks. Foamed-in-place insulation traps cold air, while the durable stainless steel construction facilitates cleaning.
Using R404A refrigerant, the True STR1FPT-1S-1S one-section pass-thru freezer maintains a temperature of -10 degrees Fahrenheit, which can be monitored in Fahrenheit or Celsius on an external display. Operating away from dirt and debris on the floor, the refrigeration system is top mounted, keeping the evaporator out of the food zone to maximize storage space. Automatic defrosting in the unit removes ice buildup when the timer counts down.
Product Details
- Part of the Spec Series
- 3 chrome shelves can be adjusted in 1⁄2-in. increments
- Stainless steel interior and exterior provides strength and rust resistance
- LED interior lighting highlights product
- Solid, stainless steel door on the front and back create a pass-thru design
- Doors close on their own to retain cold air
- 120-degree stay-open door feature facilitates loading and unloading
- Bolt-style locks on each door prevent theft
- Foamed-in-place polyurethane insulation keeps cold air inside the cabinet
- 5-in. castors with locks on the front set
Self-contained Refrigeration System
- Operating temperature: -10 degrees F
- External display can show the temperature in Fahrenheit or Celsius
- Uses R404A refrigerant
- Electronically commutated condenser and evaporator fan motors consistently move cold air while saving energy and reducing heat production
- Top mounted to maximize cabinet space
- Automatic defrost cycles are time initiated and temperature terminated
Dimensions & Utilities
- 271⁄2 in. W x 397⁄16 in. D x 841⁄8 in. H
- 8.7 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STR1FPT-1S-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 8.7 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 39.44 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84.13 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Sections | 1 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 3 years parts & labor/5 year compressor |
| Width (in) | 27.5 |
| Series | Spec Series® |
| Refrigerant | R404A |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 410.00 |
