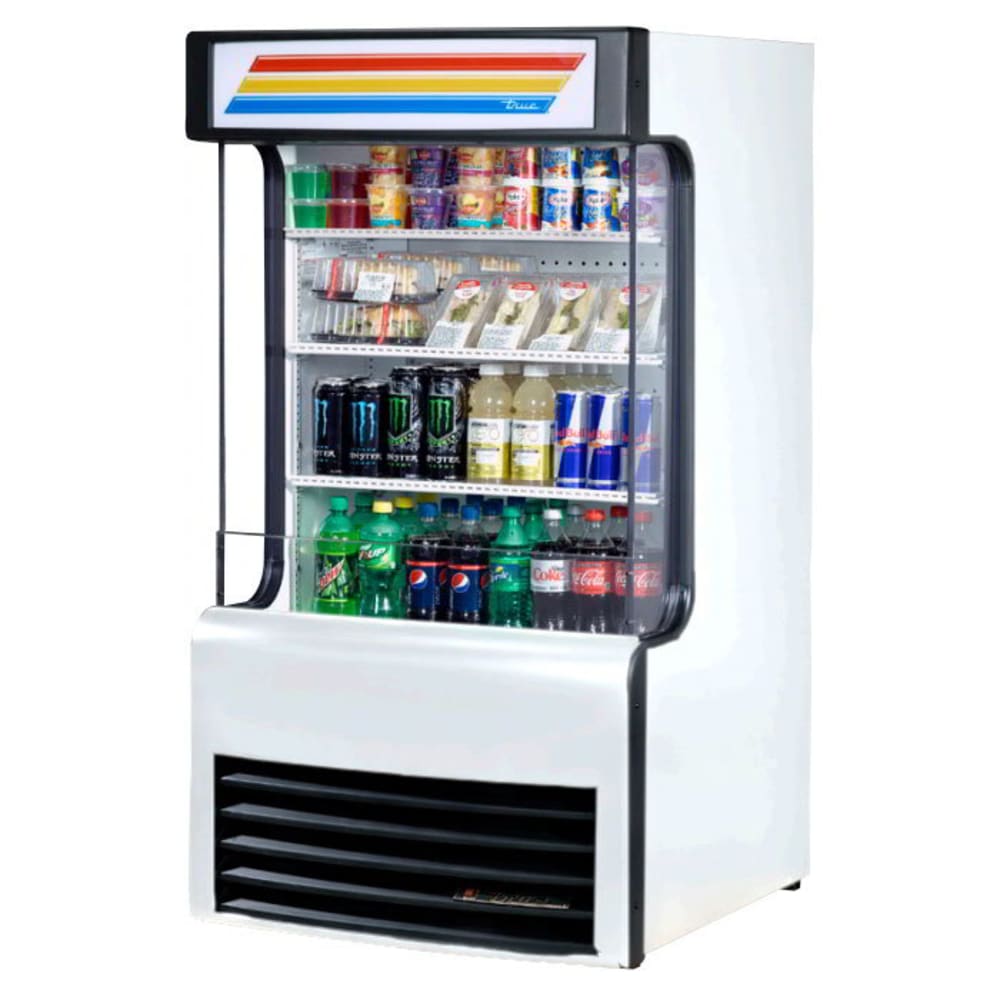

True TAC-14GS-LD 30" Vertical Open Air Cooler w/ (4) Levels, 115v

For efficient airflow, the True TAC-14GS-LD open-air merchandiser has a perforated interior back wall. The condenser fan motor reverses directions during the defrost off-cycle to keep the condenser coil clean, improving performance and cold holding temperatures. The refrigeration system maintains even temperatures between 35 and 40 degrees Fahrenheit, and the operator can set a temperature in that range. To ensure consistent cooling, the self-contained capillary tube system controls the flow of R134A refrigerant.

This True TAC-14GS-LD open-air cooler has white vinyl exterior front and sides that are durable and permanent, and a white aluminum interior liner that resists corrosion. Since the floor and deck pans are made of stainless steel, they are strong and simple to clean. The lower front and side panels are constructed of plexiglass for break resistance and visibility. To grab customers' attention, the exterior sign panel lights up, and LED interior lights ensure products are visible. PVC-coated wire shelves are adjustable on ¹⁄₂-inch increments to accommodate different product's heights.

Product Details

• 3 heavy-duty, PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments
• 4 chrome-plated clips per shelf
• Exterior sign panel illuminates to show off merchandising graphics (sold separately)
• LED interior lighting makes products visible
• Permanent white vinyl exterior front and sides resist chipping and peeling
• White aluminum interior liner brightens the cabinet
• Stainless steel floor and deck pans are quick to clean
• Lower front and side panels are made of plexiglass for durability and visibility
• Whole cabinet is foamed with polyurethane insulation for structure and cold-air retention
• Steel frame rail is black powder coated to resist corrosion and has leg levelers for uneven floors

Bottom-mounted Refrigeration System

• Temperature holding range: 35-40 degrees F
• Self-contained capillary tube system uses environmentally friendly R134A refrigerant to consistently cool the cabinet
• Defrost cycle is time initiated and time terminated to melt built-up ice
• Perforated interior back wall promotes airflow
• Cast iron evaporator fan motors are sealed and self-lubricated for sturdiness
• Condensing unit is bottom mounted for maintenance access
• Condenser fan motor reverses during the defrost off-cycle to keep the condenser coil free of dirt and debris
• Keeping coils clean ensures cold holding temperatures

Ideal Operating Conditions

• Air curtain makes the unit louder than normal refrigerators
• Manufacturer recommends a drain plumbing hookup
• Most efficient when fully loaded with products
• Designed to operate in an environment that does not exceed 75 degrees F or 55 percent relative humidity
• Should not be installed near HVAC vents, doorways, or fans that will interrupt the flow of air and compromise the function of the cabinet

Dimensions & Utilities

• Shelves: 25¹¹⁄₁₆ in. W x 17¹⁄₂ in. D
• Overall: 30¹⁄₄ in. W x 32¹⁄₈ in. D x 56³⁄₈ in. H
• 11.2 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, 6.5-ft. cord with a NEMA 5-15P plug

True Refrigeration TAC-14GS-LD Specifications
