True Refrigeration TBB-24-60G-S-HC-LD Description

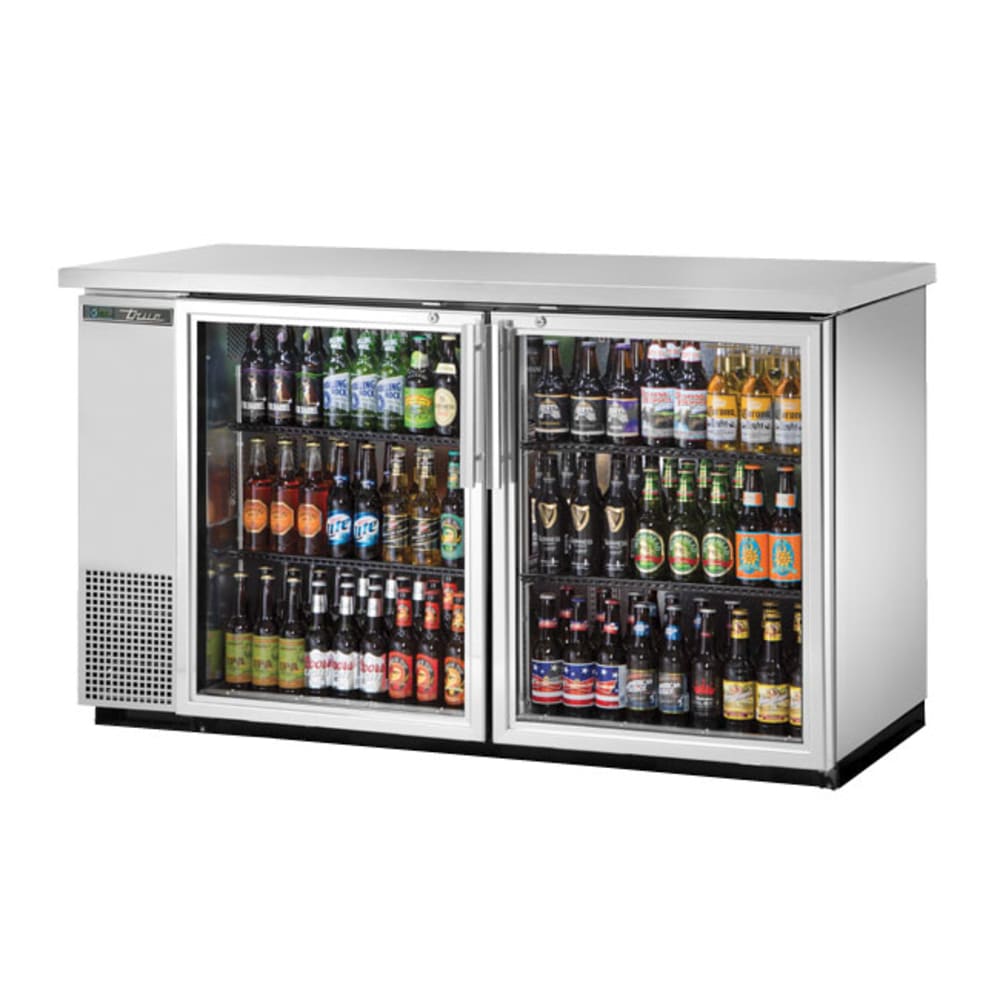

The True TBB-24-60G-S-HC-LD two-section bar refrigerator holds 72 six-packs of 12-ounce cans or three half-barrel kegs. Shelves can be adjusted to accommodate various product or removed entirely to load kegs into the cabinet. To enhance product visibility, LED lights shine in the cabinet, and customers can see the items clearly through the dual-pane glass windows. Interior surfaces are galvanized steel and stainless steel to provide rust resistance. A lip on the floor helps catch excess liquid, and the door threshold is protected from impacts when staff are restocking. Made of stainless steel, the countertops provide a place to prepare ingredients and use small equipment.
Accessible from the left side, the condensing unit in the True TBB-24-60G-S-HC-LD back bar cooler slides out for cleaning and maintenance. This system keeps temperatures between 33 and 38 degrees Fahrenheit through the use of R290 hydrocarbon refrigerant. Evaporator and condenser fan motors move cold air consistently throughout the unit while minimizing heat production. To help improve overall unit function, the condensing fan motor eliminates buildup from the condensing coil's surface, enabling it to work properly with less energy usage. By blowing in a reverse direction for 20 seconds when the compressor is turned on, the fan removes debris from the coil's surface. A cleaner coil can keep products at their desired temperature, and with preventive maintenance, it can work for longer periods of time.
Product Details
- Can hold (72) 6-packs of 12-oz. cans or 3 half-barrel kegs
- 4 PVC-coated wire shelves adjust on 1⁄2-in. increments to accommodate various items
- LED lighting brightens the interior to enhance visibility
- Galvanized steel interior walls with a quick-cleaning stainless steel floor
- Stainless steel countertop, front, and sides are strong and rust resistant
- Aluminum back withstands high-volume use
- 2 double-pane glass doors enable customers to see product
- Reinforced lip protects threshold when product is loaded into the cabinet
- Doors can be locked to limit cabinet access
- Cabinet is foamed in place with polyurethane insulation to add structure
Left-mount Refrigeration System
- Temperature holding range: 33-38 degrees F
- R290 hydrocarbon refrigerant
- Evaporator and condenser fan motors move air consistently with little heat production
- Condensing coil cleaned with reverse condensing fan motor technology
- Epoxy-coated evaporator reduces the risk of corrosion
- Slide-out condensing unit is accessible on the left behind the front grille
Dimensions & Utilities
- Shelves: 233⁄4 in. W x 18 in. D
- Overall: 611⁄8 in. W x 267⁄8 in. D x 355⁄8 in. H
- 2.7 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-24-60G-S-HC-LD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Base | Frame |
| Color | Silver |
| Compressor Location | Left |
| Depth (in) | 26.88 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 35.63 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 61.13 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 355.00 |
