Description
True Refrigeration TBB-24-72-S-HC Description

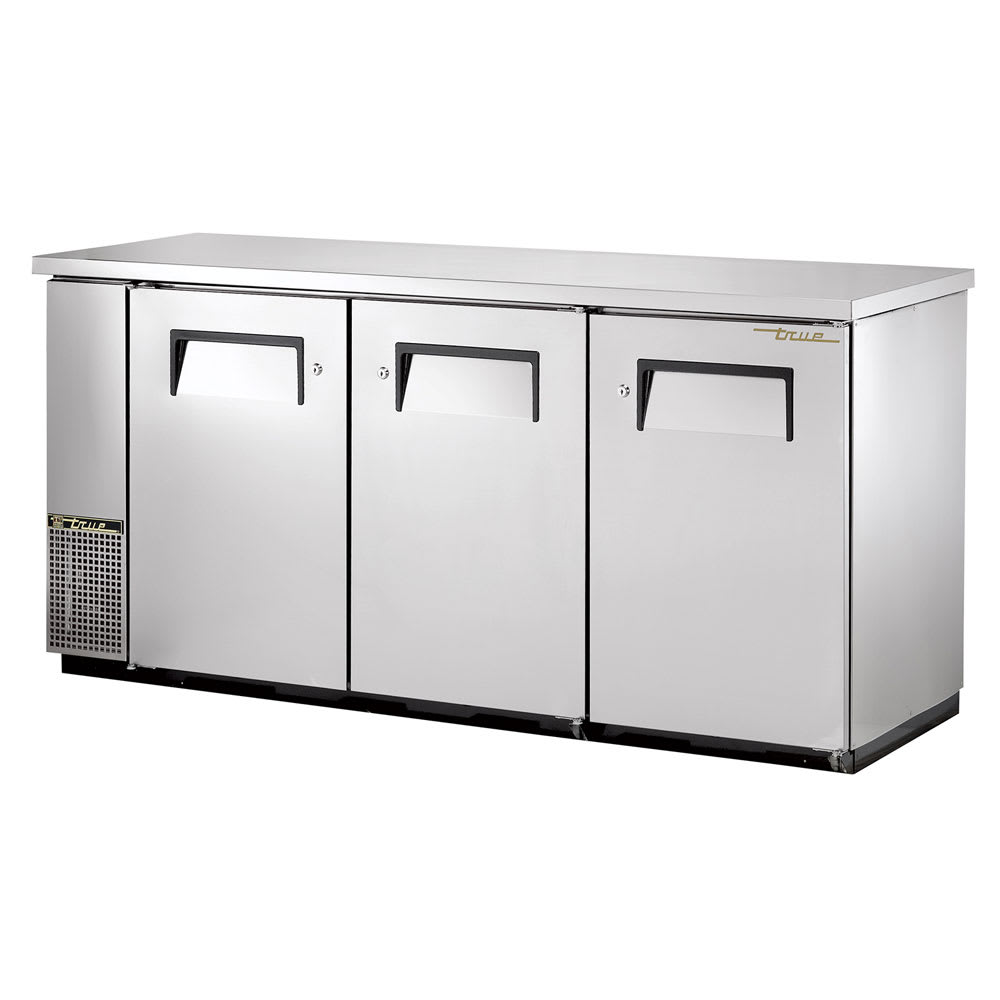

For durability, the True TBB-24-72-S-HC three-section bar refrigerator has a stainless steel exterior and a matching aluminum back. Its top doubles as a counter where employees can prepare drinks or garnishes. Each door has a 12-inch handle and swings open, and during product loading and unloading, a threshold protector prevents damage to the interior. When the doors close, magnetic gaskets help create an airtight seal so that heat does not creep in. Polyurethane foam insulates the cabinet walls and doors, and to prevent theft, each door locks.
Inside the True TBB-24-72-S-HC three-section bar refrigerator, product can sit on four adjustable shelves. LED lighting shines on products, so employees can quickly find what they need. With R290 hydrocarbon refrigerant, the capillary tube refrigeration system maintains precise temperatures in a range of 33 to 38 degrees Fahrenheit. Its condenser and evaporator fans are efficient and create less heat than traditional motors. Cooling components are held together behind the grille and slide out for maintenance or cleaning, and the door gaskets can be removed without tools.
For improved unit efficiency, the condensing fan motor blows in reverse for 20 seconds when the compressor is turned on, removing buildup from the condensing coil. A cleaner coil can keep product cool with less energy usage, and with proper preventive maintenance, it can help increase the unit's lifespan.
Product Details
- Can hold (105) 6-packs of 12-oz. cans or 3 half-barrel kegs
- 4 PVC-coated shelves are removable and adjustable in 1⁄2-in. increments
- Uses R290 hydrocarbon refrigerant and capillary tube cooling system
- Temperature holding range: 33-38 degrees F
- Fans produce little heat and consume little energy
- Reverse condensing fan motor technology reduces buildup on condensing coil
- Slide-out condenser for quick servicing
- Locks protect product from theft
Durable Construction
- Provides stainless steel counterspace
- Sturdy stainless steel front and sides and matching aluminum back
- High-density polyurethane insulation retains cold air
- Interior is galvanized steel with a quick-cleaning stainless steel floor
- Heavy-duty steel frame rail adds structure
- Magnetic door gaskets reduce cold-air leaks
- 12-inch handle is firmly attached
- Threshold protector minimizes scrapes and dents
Dimensions & Specifications
- Left and center shelves: 40 in. W x 18 in. D
- Right shelves: 193⁄8 in. W x 18 in. D
- Overall: 731⁄8 in. W x 251⁄2 in. D x 355⁄8 in. H
- 2.7 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-24-72-S-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Base | Frame |
| Color | Silver |
| Compressor Location | Left |
| Depth (in) | 25.5 |
| Door Design | Swing |
| Door Type | Solid |
| Height (in) | 35.63 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 73.13 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 3 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 380.00 |
