True Refrigeration TBB-24GAL-48G-HC-LD Description

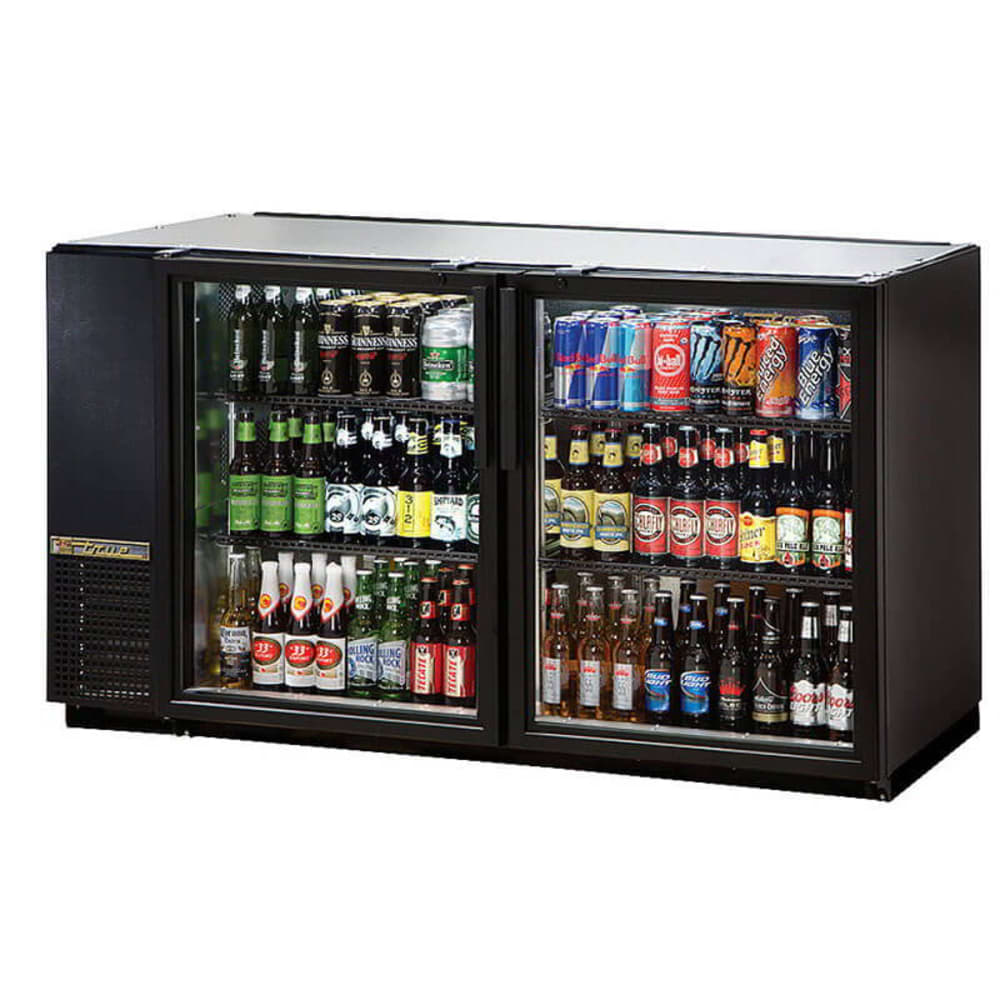

The True TBB-24GAL-48G-HC-LD two-section bar refrigerator has a wear-resistant black vinyl finish on its front and sides, and its back is matching black aluminum. Smooth enough to slide under counters and save floor space, the top is made of corrosion-resistant galvanized steel. Each door swings open with a 12-inch handle and seals shut with magnetic gaskets. Locks protect the contents from unauthorized access, and LED lights ensure products are visible to customers from a distance. Inside, 48 six-packs of 12-ounce cans sit on the shelves. Depending on the tapping kit, two half-barrel kegs can fit in the interior space.
Products in the True TBB-24GAL-48G-HC-LD back bar cooler stay at a set temperature ranging from 33 to 38 degrees Fahrenheit. To keep these temperatures consistent, capillary tubes control the flow of R290 hydrocarbon refrigerant. Cold air is confined to the cabinet by polyurethane-insulated walls and thermal-insulated glass. Reliable and energy efficient, the condenser slides out when maintenance is needed. Every time the compressor turns on, the condensing fan motor directs air toward the condensing coil, removing buildup of dirt, dust, and debris. With a cleaner condensing coil surface, it can operate more efficiently, cooling items without using as much energy. With frequent preventive maintenance, a well-functioning coil can also increase the unit's lifespan.
Product Details
- Can hold (48) 6-packs of 12-oz. cans or 2 half-barrel kegs
- Temperature holding range: 33-38 degrees F
- Evaporator and condenser fan motor are efficient, needing less energy than traditional motors
- Condensing coil cleaned with reverse condensing fan motor mechanism
- Uses R290 hydrocarbon refrigerant and a self-contained capillary tube system
- Interior LED lighting keeps the product highly visible and includes a safety shield
- 4 wire shelves are PVC coated and adjustable in 1⁄2-in. increments
- Includes 4 chrome-plated shelf clips to secure each shelf
- Locks protect cabinet contents
- Condensing unit is placed behind the front grill and is accessible for cleaning and maintenance
Sturdy Construction
- Exterior front and sides have a laminated black vinyl cover, back is made from aluminum, and top is made from galvanized stainless steel
- Interior has a stainless steel floor with a 1⁄2-in. reinforced lip and heavy-duty galvanized steel walls
- Door threshold keeps the cabinet from being damaged during loading and unloading
- Cabinet structure contains high-density polyurethane insulation
- Doors have a double-pane, thermal-insulated glass design with extruded aluminum frames
- Magnetic gaskets create a strong seal around the door
- 12-in. handles offer a comfortable grip
Dimensions & Utilities
- Shelves: 173⁄8 in. W x 161⁄4 in. D
- Overall: 477⁄8 in. W x 265⁄8 in. D x 341⁄4 in. H
- 2.1 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-24GAL-48G-HC-LD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | TBB24GAL48G, TBB-24GAL-48G, TRUTBB24GAL48G, TRUE TBB-24GAL-48G, 890TBB24GAL48G, 675-249, TBB-24GAL-48G-LD |
| Base | Frame |
| Color | Black |
| Compressor Location | Left |
| Depth (in) | 26.63 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 34.25 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 47.88 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 315.00 |
