Description
True Refrigeration TBB-3-S-HC Description

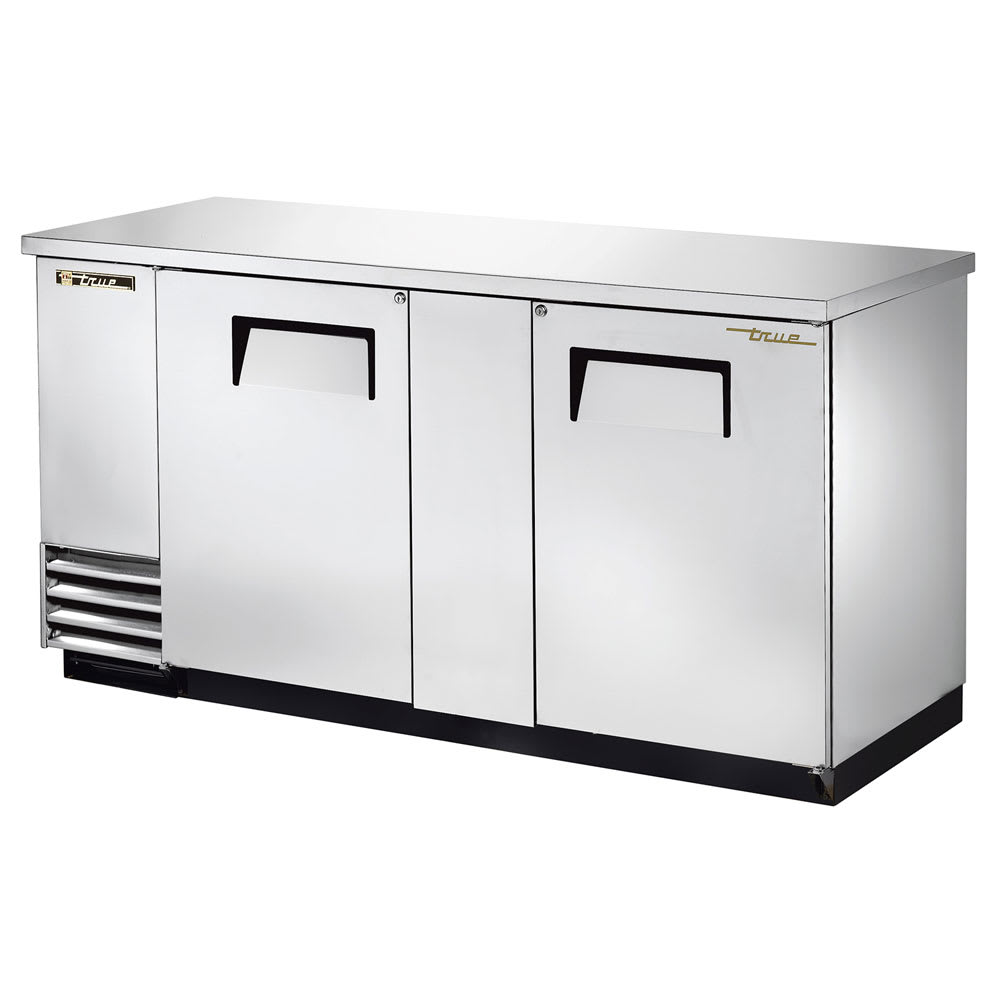

To resist corrosion, the exterior of the True TBB-3-S-HC two-section back bar cooler is made of stainless steel, and its back is made of aluminum to match the front. The interior walls are made of stainless steel and insulated with polyurethane foam. To minimize damage from loading and unloading, a door threshold is placed right inside the doors. LED lights illuminate the interior and ensure product is visible. Both stainless steel doors have magnetic gaskets to prevent cold-air leaks, and four interior PVC-coated wire shelves hold product.
This True TBB-3-S-HC bar refrigerator has a self-contained capillary tube system that holds and controls the flow of R290 hydrocarbon refrigerant. Temperatures stay between 33 and 38 degrees Fahrenheit, and the evaporator and condenser fan motors are electronically commutated to consistently move air without consuming too much energy or producing too much heat. The condensing coil's debris is blown off with the reverse condensing fan motor. Each time the compressor is turned on, the motor blows in an opposite direction for 20 seconds. This technology can help remove unwanted buildup so the coil can work more efficiently, using less energy while keeping products cool. To resist corrosion, its evaporator is coated with epoxy. The condensing unit slides out for service access.
Product Details
- Stainless steel exterior with matching aluminum back
- Interior stainless steel floor with 1⁄2-in. reinforced lip
- Insulated with polyurethane foam for temperature retention
- Door threshold minimizes scratches and dents from loading and unloading
- Welded steel frame rail is coated in black powder for corrosion resistance
- LED lighting brightens interior and is safety shielded
- 2 stainless steel doors have magnetic gaskets to prevent cold air from seeping out
- 12-in.-long door handles offer a comfortable grip
- Door locks prevent theft
- 4 PVC-coated black wire shelves support product
Refrigeration System
- Temperature holding range: 33-38 degrees F
- Self-contained capillary tube system regulates R290 hydrocarbon refrigerant
- Condenser and evaporator fan motors efficiently move air since they are electronically commutated
- Condensing coil cleaned off with reverse fan motor mechanism
- Condensing unit slides out for convenient access when cleaning and servicing
- Epoxy-coated evaporator resists corrosion
Dimensions & Utilities
- 2 right shelves: 313⁄4 in. W x 211⁄4 in. D
- 2 left shelves: 32 in. W x 211⁄4 in. D
- Overall: 691⁄8 in. W x 283⁄4 in. D x 37 in. H
- 2.8 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-3-S-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Base | Frame |
| Color | Silver |
| Compressor Location | Left |
| Depth (in) | 28.75 |
| Door Design | Swing |
| Door Type | Solid |
| Height (in) | 37 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 year compressor |
| Width (in) | 69.13 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 415.00 |
