Description
rue Refrigeration TPP-AT-119D-8-HC Description

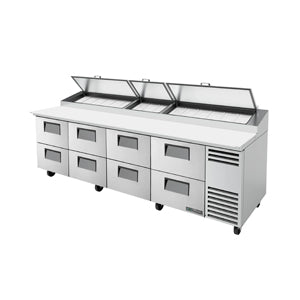

The True TPP-AT-119D-8-HC prep table has a large pan rail that comes with 15 third-size pans. Each pan can be used to hold a different ingredient, and the wide cutting board accommodates pizzas for prepping and ingredient topping. Foam-insulated lids cover the pan area, containing cold air to maintain the set temperature level and minimize condensation. In the base, eight drawers hold additional ingredients, each drawer holding two 12-inch by 20-inch by 8-inch pans. These drawers are durable with stainless steel slides and 12-inch-long, recessed drawer handles.
Temperatures in this True TPP-AT-119D-8-HC pizza prep table range from 33 to 41 degrees Fahrenheit—a level that operators can set to suit certain products. It uses R290 hydrocarbon refrigerant, which is more environmentally friendly than traditional alternatives, and airflow in the unit is forced with a guided pattern that evenly cools the pan section and storage base.
When the unit's compressor starts, the condensing fan motor reverses for 20 seconds to remove dirt from the condensing coil. By keeping the coil clean, the unit's efficiency is increased and energy consumption is reduced. This is a self-cleaning feature, however, maintenance should still be implemented regularly.
Product Details
- 15 third-size pans in pan rail
- Stainless steel pan lids are foam insulated to retain cold air and lock in freshness
- Removable polyethylene cutting board accommodates pizzas
- 8 drawers in the base
- Each drawer holds (2) 12-in. x 20-in. x 8-in.-deep pans (sold separately)
- Removable, 1-piece drawer gaskets
- Drawers have 12-in.-long recessed handles
- Stainless steel drawer slides are removable
- Temperature holding range: 33-41 degrees F
- Guided airflow keeps the pan rail and cabinet base at even temperatures
- Front-breathing design
- Front-accessible condenser eases cleaning
- Fan motor reverses upon compressor start up to clean the condensing coil
- Uses R290 hydrocarbon refrigerant
- Foamed-in-place polyurethane insulation traps cold air
- Aluminum interior with stainless steel floor
- Stainless steel exterior top, front, and sides
- 5-in.-diameter castors
Dimensions & Utilities
- Cutting board: 1191⁄4 in. W x 191⁄2 in. D
- Overall: 1191⁄4 in. W x 363⁄8 in. D x 445⁄8 in. H
- 7.1 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, NEMA 5-15P plug
True Refrigeration TPP-AT-119D-8-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Cutting Board Depth (in) | 19.5 |
| Depth (in) | 36.38 |
| Front Access | Drawer |
| Height (in) | 44.63 |
| Hertz | 60 |
| Number of Drawers | 8 |
| Sections | 4 |
| Type | Standard |
| Use | Pizza |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 119.25 |
| Series | TPPAT Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Made in USA | Yes |
| Product Type | Commercial Refrigeration |
| Includes | Food Pans |
| Max Pan Depth (in) | 6 |
| Weight | 975.00 |
