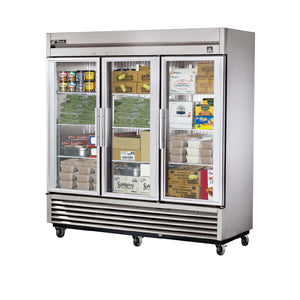

True Refrigeration TS-72FG-HC~FGD01 Description
The True TS-72FG-HC~FGD01 reach-in freezer maintains a constant temperature of -10 degrees Fahrenheit, which is ideal for frozen foods and ice cream. Users can conveniently monitor these temperatures on the digital display, and the condenser is mounted on the bottom, slightly lifting the bottom shelf up so users do not have to stoop to reach products. Airflow guards in the cabinet keep product from blocking the flow of air.
Using a reverse condensing fan motor, dirt, dust, and debris is blown off the condensing coil's surface. The unit operates more efficiently when the coil is clean, providing improved product temperatures and reducing its energy consumption. Although this is a self-cleaning feature, regular maintenance should still be implemented.
In the cabinet, nine PVC-coated wire shelves hold stored items and are adjustable in 1⁄2-inch increments to accommodate various products. Durable for commercial use, the stainless steel exterior resists corrosion. Foamed-in-place polyurethane insulation keeps cold air in the cabinet while providing structure, and the three glass doors have triple-pane, thermally insulated glass to keep cold air in and warm air out. A positive seal is created with the help of the magnetic gaskets that prevent cold air leaks. The True TS-72FG-HC~FGD01 three-section freezer includes locks to deter unauthorized access.
Product Details
- 9 PVC-coated wire shelves are adjustable in 1⁄2-in. increments
- Rear airflow guards ensure users do not store product in the path of airflow
- LED lighting increases visibility in the cabinet
- Stainless steel interior is heavy duty and rust resistant
- Triple-pane, thermal glass doors show off product without releasing cold air
- Doors self-close to trap cold air
- 15-in. door handles
- 1-piece, magnetic door gaskets are removable
- Stainless steel exterior front, doors, and sides with GalFan-coated steel exterior back
- Polyurethane insulation is foamed in place to increase structural strength
High-capacity Refrigeration System
- Operating temperature: -10 degrees F
- Exterior digital temperature display
- Eco-friendly R290 hydrocarbon refrigerant
- Electronically commutated fan motors save energy and reduce heat production
- Dirt and dust blown away from condensing coil with a reverse condensing fan motor
- Epoxy evaporator coating resists corrosion
- Bottom-mounted condensing unit is accessible for maintenance
- Time-initiated, temperature-terminated automatic defrost
Dimensions & Utilities
- Shelves: 241⁄8 in. W x 223⁄8 in. D
- Overall: 781⁄8 in. W x 311⁄8 in. D x 833⁄8 in. H
- 13 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug
True Refrigeration TS-72FG-HC~FGD01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | TS-72FG-LD |
| Amps | 13 |
| Color | Silver |
| Compressor Location | Bottom |
| Depth (in) | 31.13 |
| Door Design | Full |
| Door Type | Glass |
| Exterior Construction | Stainless Steel |
| Height (in) | 83.38 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Sections | 3 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 year compressor |
| Width (in) | 78.13 |
| Series | TS Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Best |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-20P |
| Hinge Configuration | Left/Right |
| Weight | 821.00 |
