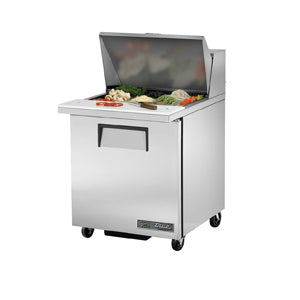

True Refrigeration TSSU-27-12M-B-HC Description
The True TSSU-27-12M-B-HC prep table with refrigerated base is great for small sandwich shops or pizza places, as toppings such as onions, mushrooms, and bell peppers can be held in the top compartment in nine sixth-size and three ninth-size pans. Its white polyethylene cutting board can be used to slice and chop these toppings or as a prep station to prepare meals. A lid sits over the pan compartment, keeping toppings cold and reducing the risk of contamination, while extra product can be stored in the refrigerated base.
The cabinet can be accessed with a 12-inch recessed handle on the door. It has gaskets to keep cold air from leaking, and the unit is insulated to retain cold air. Its stainless steel and aluminum construction is durable and corrosion resistant, while cool temperatures are produced by R290 hydrocarbon refrigerant moving through the capillary tube system. Ensuring temperatures in the base and top are consistent, the evaporator fan motor and large fan blades provide a low-velocity, high-volume airflow. On this True TSSU-27-12M-B-HC prep table with refrigerated base, the refrigeration system is accessible from the rear.
Ensuring the condensing coil remains clean, this unit operates with a reverse condensing fan motor. It blows dirt and debris off the coil by reversing for 20 seconds each time the compressor starts up. To lengthen the unit's lifespan and improve efficiency, this feature should be implemented alongside routine maintenance.
Product Details
- Stain-resistant stainless steel construction eases cleaning
- Durable, clear-coat aluminum interior liner
- Coved corners in the stainless steel floor do not collect debris
- 5-in.-diameter stem castors have locks to keep the unit in place
- Stainless steel door exterior with aluminum interior liner
- 12-in. recessed handle
- Door stays open at 90 degrees to facilitate product loading
- Magnetic gasket on the door prevents cold air leaks
- 2 adjustable, PVC-coated shelves resist corrosion
- 87⁄8-in. cutting board can be used to prepare ingredients and meals
- Stainless steel, foam-insulated lid protects product from contaminants
- Top compartment holds 9 sixth-size and 3 ninth-size polycarbonate pans
Self-contained Refrigeration System
- Capillary tube system uses R290 hydrocarbon refrigerant
- Temperature holding range: 33-41 degrees F
- Rear access to condensing unit
- Large fan blades and evaporator fan motor create low-velocity, high-volume airflow
- Fan motor reverses to remove dirt and debris from the condensing coil
- Evaporator resists corrosion since it is epoxy coated
Dimensions & Utilities
- Sixth-size pans: 67⁄8 in. L x 61⁄4 in. W x 4 in. D
- Ninth-size pans: 41⁄4 in. L x 615⁄16 in. W x 4 in. D
- Shelves: 231⁄4 in. W x 16 in. D
- Overall: 277⁄8 in. W x 351⁄8 in. D x 465⁄8 in. H
- 3.5 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug
True Refrigeration TSSU-27-12M-B-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | TSSU-27-12M-B, TRUE TSSU-27-12M-B, TSSU2712MB, TRUTSSU2712MB, 890TSSU2712MB |
| Cutting Board Depth (in) | 8.88 |
| Depth (in) | 35.13 |
| Door Type | Solid |
| Front Access | Door |
| Height (in) | 46.63 |
| Hertz | 60 |
| Sections | 1 |
| Type | Mega Top |
| Use | Sandwich/Salad |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27.88 |
| Series | TSSU Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Includes | Food Pans |
| Max Pan Depth (in) | 6 |
| Weight | 235.00 |
