Description

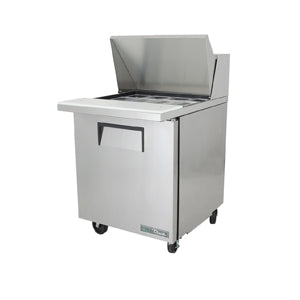

True Refrigeration TSSU-27-12M-C-HC Description
The True TSSU-27-12M-C-HC prep table has a refrigerated base with a self-contained refrigeration system that is accessible from the rear for maintenance, and corrosion is resisted because the evaporator is coated in epoxy. Its set cold temperature—ranging from 33 to 41 degrees Fahrenheit—is maintained by R290 hydrocarbon refrigerant in the capillary tube system. Cold air is evenly distributed throughout the cabinet and pan compartment by the evaporator fan motor and fan blades.
When the condensing coil is kept clean, this unit runs at peak efficiency. To ensure it stays clean, it operates with an automatic reverse condensing fan motor that blows dust off the coil. For best results, employees should implement preventative maintenance regularly.
Constructed of stainless steel, this unit's exterior is durable, and its foam-insulated lid protects the 12 sixth-size pans in the top cutout, keeping cold air over them. Pizzas, salads, sandwiches, and ingredients can be prepared on the polyethylene cutting board, and additional products can be stored in the base of the True TSSU-27-12M-C-HC prep table on two PVC-coated shelves. Because the door stays open past 90 degrees, loading and unloading items is streamlined.
Product Details
- Exterior construction is stainless steel to withstand high-volume use
- Clear-coat aluminum interior liner resists corrosion
- Stainless steel floor has coved corners for simplified cleaning
- 2 of the 5-in.-diameter stem castors have locks
- 12-in. recessed door handle
- 90-degree, stay-open door feature facilitates loading and unloading product
- Magnetic gasket prevents cold-air leaks
- Store product in the cabinet on 2 adjustable, PVC-coated shelves
- Slice and prep food on the 87⁄8-in. D x 1⁄2-in. H polyethylene cutting board
- Stainless steel lid keeps product chilly
- Includes 12 sixth-size, 4-in.-deep pans
Self-contained Refrigeration System
- Capillary tube system maintains cold temperatures with R290 hydrocarbon refrigerant
- Temperature holding range: 33-41 degrees F
- Refrigeration system is accessible through the back of the cabinet
- Evaporator and condenser fan motors consistently move air to reduce heat and conserve energy
- Condensing fan motor reverses upon compressor start up to clean the condensing coil
- Corrosion-resistant, epoxy-coated evaporator
Dimensions & Utilities
- Shelf: 231⁄4 in. W x 16 in. D
- Overall: 277⁄8 in. W x 351⁄8 in. D x 465⁄8 in. H
- 3.5 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug
True Refrigeration TSSU-27-12M-C-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | TSSU2712MC, 890TSSU2712MC, 675-068, TSSU-27-12M-C, TRUE TSSU-27-12M-C |
| Cutting Board Depth (in) | 8.88 |
| Depth (in) | 35.13 |
| Door Type | Solid |
| Front Access | Door |
| Height (in) | 46.63 |
| Hertz | 60 |
| Sections | 1 |
| Type | Mega Top |
| Use | Sandwich/Salad |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27.88 |
| Series | TSSU Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Includes | Food Pans |
| Max Pan Depth (in) | 4 |
| Weight | 235.00 |
