Description
Key Features

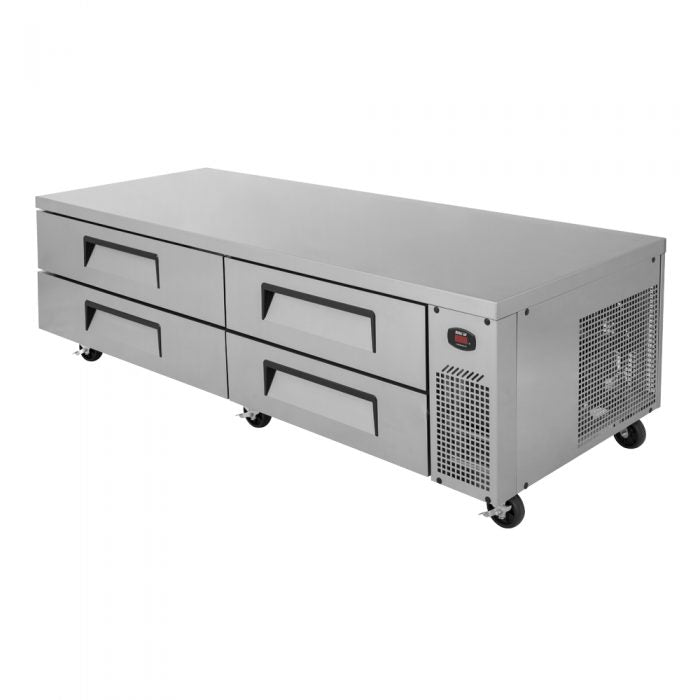

Super Deluxe Chef Base Refrigerator, 83-5/8″W x 32″D x 20-1/4″H, 16.04 cu. ft., side mounted self-contained refrigeration system, self-cleaning condenser device, (4) durable drawers with recessed handles, accommodates pans up to 6″ deep, capacity: (3) full size pans per drawer (left side top & bottom) & (2) full size pans per drawer (right side top & bottom) (NOT included), 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 6.2 amps, NEMA 5-15P, cETLus, ETL-Sanitation
Warranty
- 5 Year Parts & Labor
- 7 Year Compressor Warranty
Documents
Features
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Strong body and durable construction
Built with heavy duty 16 ga. stainless steel, Chef Base top is manufactured of one-piece reinforced stainless steel to ensure durability.
Countertops
TCBE-36SDR-N6/48/52SDR-N supports up to 788 pounds of equipment. TCBE-72/82SDR-N supports up to 1,192 pounds of equipment. TCBE-96SDR-N supports up to 1,435 pounds of equipment.
Side mount compressor unit
Compressors positioned on the side of the units makes servicing our units easy. Our front air intake feature also allows this model to be highly efficient in narrow spaces.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Digital temperature display on front panel
Each left side drawer accommodates up to 6” deep three (3) full size pans and right side drawer accommodates up to 6’ deep two (2) full size pans (drawer pans not included)
Top is insulated to eliminate heat transfer to the interior of cabinet
Durable stainless steel drawers
Refrigerator holds 33°F ~ 38°F for the best in food preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4” dia. swivel casters standard
